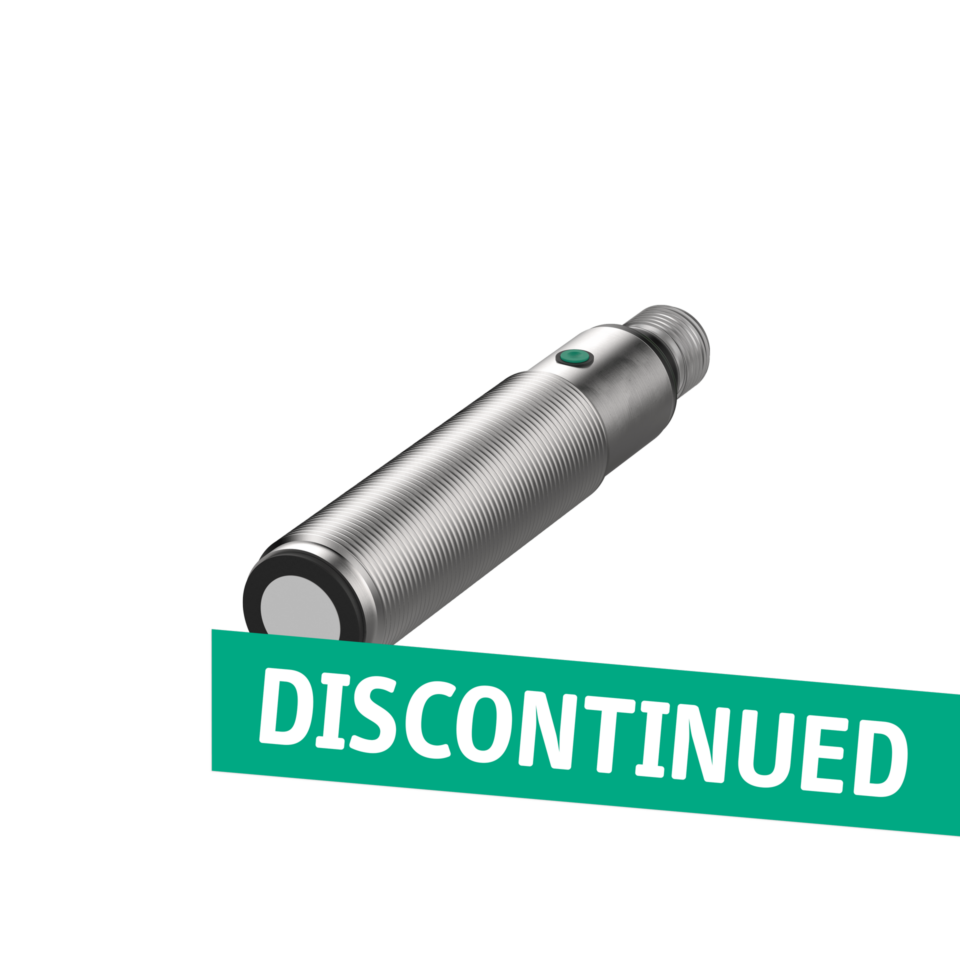

Sensor ultrassônico M18 design longo ATEX

Avalie este produto

Sensor ultrassônico M18 design longo ATEX

Avalie este produto
  • Reliable measuring regardless of transparency, gloss, surface characteristics and material colour
  • Resistant to contamination, moisture, dust and mist
  • Stainless steel housing material (DIN 1.4404) or plastic (PBT)
  • Two different operating ranges up to 2.2 m
  • Switching output NPN/PNP/Push-Pull, analogue output, IO-Link
  • Parameterization via teach-in button or IO-Link
  • Four operating modes: retro-reflective, window, hysteresis and switching point operation
  • Synchronization and multiplex mode
  • Temperature compensation
  • ATEX approval

​UDA18 ATEX ultrasonic sensors have the same functions and features as the sensors of the U*18 series. They were, however, developed especially for use in areas potentially subject to gas or dust explosion. They have ATEX approval, making them suitable for use in the chemical and pharmaceutical industries as well as in systems that process oil and gas.

View my requests
  Baixar tudo

Desenho técnico

1/3
CAT_SENS_U_18_Standard_DRW
Tela cheia
1/3
2/3
CAT_SENS_U_18_Standard_CON
Tela cheia
2/3
3/3
CAT_SENS_U_18_Standard_CD_ML
Tela cheia
3/3

Características do artigo

  • UDA18MCN090S
  • UDA18MCN220S
  • UDA18MCP090S
  • UDA18MCP220S
  • UDA18MVN090S
  • UDA18MVN220S
  • UDA18MVP090S
  • UDA18MVP220S
  • UDA18M2N090S
  • UDA18M2N220S
  • UDA18M2P090S
  • UDA18M2P220S
  • UDA18PCN090S
  • UDA18PCN220S
  • UDA18PCP090S
  • UDA18PCP220S
  • UDA18PVN090S
  • UDA18PVN220S
  • UDA18PVP090S
  • UDA18PVP220S
  • UDA18P2N090S
  • UDA18P2N220S
  • UDA18P2P090S
  • UDA18P2P220S
  • Continuous current
  • Switching frequency
  • Polarity reversal protection
  • Switching output
  • Output signal min.
  • Output signal max.
  • Output signal min.
  • Output signal max.
  • Operating voltage min.
  • Operating voltage max.
  • Current consumption
  • Load resistance min.
  • Load resistance max.
  • Technology
  • Operating frequency
  • Outputs
  • Operating Mode
  • Sensing range
  • Opening angle of sound cone
  • Ripple
  • Repeating accuracy
  • Resolution
  • Thermal drift
  • Overload protection
  • Short-circuit protection
  • Synchronization
  • Multiplexing
  • Linearity error
  • Blind zone
  • Response time analogue output
  • EMC
  • Accessories supplied
  • Application specific
  • Controls
  • Indicators
  • Dimensions
  • Housing design
  • Housing material
  • Material sound transducer
  • Protection class
  • Operating temperature min.
  • Max. operating temperature
  • Min. storage temperature
  • Max. storage temperature
  • Temperature compensation
  • Thread
  • Torque
  • Weight
  • Connector type
  • CE label
  • UL certification
  • ATEX
  • Version gas
  • Version dust
AttributeUDA18MCN090SUDA18MCN220SUDA18MCP090SUDA18MCP220SUDA18MVN090SUDA18MVN220SUDA18MVP090SUDA18MVP220SUDA18M2N090SUDA18M2N220SUDA18M2P090SUDA18M2P220SUDA18PCN090SUDA18PCN220SUDA18PCP090SUDA18PCP220SUDA18PVN090SUDA18PVN220SUDA18PVP090SUDA18PVP220SUDA18P2N090SUDA18P2N220SUDA18P2P090SUDA18P2P220S
Bestellung
Bestellung
Continuous current 0.1 A 0.1 A 0.1 A 0.1 A
Switching frequency 3 Hz 2 Hz 3 Hz 2 Hz 3 Hz 2 Hz 3 Hz 2 Hz 3 Hz 2 Hz 3 Hz 2 Hz 3 Hz 2 Hz 3 Hz 2 Hz 3 Hz 2 Hz 3 Hz 2 Hz 3 Hz 2 Hz 3 Hz 2 Hz
Polarity reversal protection yes yes yes yes
Switching output NPN PNP NPN PNP NPN PNP NPN PNP NPN PNP NPN PNP
Output signal min. – 0 V DC – – 0 V DC –
Output signal max. – 10 V DC – – 10 V DC –
Output signal min. 4 mA – – 4 mA – –
Output signal max. 20 mA – – 20 mA – –
Operating voltage min. 10 V DC 10 V DC 10 V DC 10 V DC
Operating voltage max. 30 V DC 30 V DC 30 V DC 30 V DC
Current consumption < 50 mA < 50 mA < 50 mA < 50 mA
Load resistance min. – 3000 Ohm – – 3000 Ohm –
Load resistance max. 500 Ohm – – 500 Ohm – –
Technology Ultrasonic Ultrasonic Ultrasonic Ultrasonic
Operating frequency 300 kHz 200 kHz 300 kHz 200 kHz 300 kHz 200 kHz 300 kHz 200 kHz 300 kHz 200 kHz 300 kHz 200 kHz 300 kHz 200 kHz 300 kHz 200 kHz 300 kHz 200 kHz 300 kHz 200 kHz 300 kHz 200 kHz 300 kHz 200 kHz
Outputs 1x 4...20mA + 1x NPN 1x 4...20mA + 1x PNP 1x 0...10V + 1x NPN 1x 0...10V + 1x PNP 2x NPN 2x PNP 1x 4...20mA + 1x NPN 1x 4...20mA + 1x PNP 1x 0...10V + 1x NPN 1x 0...10V + 1x PNP 2x NPN 2x PNP
Operating Mode diffuse reflection sensor diffuse reflection sensor diffuse reflection sensor diffuse reflection sensor
Sensing range 100...900 mm 200...2200 mm 100...900 mm 200...2200 mm 100...900 mm 200...2200 mm 100...900 mm 200...2200 mm 100...900 mm 200...2200 mm 100...900 mm 200...2200 mm 100...900 mm 200...2200 mm 100...900 mm 200...2200 mm 100...900 mm 200...2200 mm 100...900 mm 200...2200 mm 100...900 mm 200...2200 mm 100...900 mm 200...2200 mm
Opening angle of sound cone 10 ±2 ° 14 ±2 ° 10 ±2 ° 14 ±2 ° 10 ±2 ° 14 ±2 ° 10 ±2 ° 14 ±2 ° 10 ±2 ° 14 ±2 ° 10 ±2 ° 14 ±2 ° 10 ±2 ° 14 ±2 ° 10 ±2 ° 14 ±2 ° 10 ±2 ° 14 ±2 ° 10 ±2 ° 14 ±2 ° 10 ±2 ° 14 ±2 ° 10 ±2 ° 14 ±2 °
Ripple 5 % 5 % 5 % 5 %
Repeating accuracy 0.5 % 0.5 % 0.5 % 0.5 %
Resolution <= 3 mm <= 3 mm <= 3 mm <= 3 mm
Thermal drift ±2 % ±2 % ±2 % ±2 %
Overload protection yes yes yes yes
Short-circuit protection yes yes yes yes
Synchronization yes yes yes yes
Multiplexing yes yes yes yes
Linearity error 1 % 1 % 1 % 1 %
Blind zone 100 mm 200 mm 100 mm 200 mm 100 mm 200 mm 100 mm 200 mm 100 mm 200 mm 100 mm 200 mm 100 mm 200 mm 100 mm 200 mm 100 mm 200 mm 100 mm 200 mm 100 mm 200 mm 100 mm 200 mm
Response time analogue output 500 ms 500 ms 500 ms 500 ms
EMC EN 60947-5-2 EN 60947-5-2 EN 60947-5-2 EN 60947-5-2
Accessories supplied 2 stainless steel nuts SW24 2 stainless steel nuts SW24 2 plastic nuts SW22 + 2 rubber washers 2 plastic nuts SW22 + 2 rubber washers
Application specific ATEX ATEX ATEX ATEX
Controls Teach-in button Teach-in button Teach-in button Teach-in button
Indicators Switching state: 2 LEDs yellow, Echo: 1 LED green Switching state: 2 LEDs yellow, Echo: 1 LED green Switching state: 2 LEDs yellow, Echo: 1 LED green Switching state: 2 LEDs yellow, Echo: 1 LED green
Dimensions M18x1; L=91,6mm M18x1; L=91,6mm M18x1; L=91,6mm M18x1; L=91,6mm
Housing design cylindrical cylindrical cylindrical cylindrical
Housing material stainless steel 1.4404 stainless steel 1.4404 PBT PBT
Material sound transducer Epoxy resin with glass balls Epoxy resin with glass balls Epoxy resin with glass balls Epoxy resin with glass balls
Protection class IP67 DIN EN 60529 IP67 DIN EN 60529 IP67 DIN EN 60529 IP67 DIN EN 60529
Operating temperature min. -20 °C -20 °C -20 °C -20 °C
Max. operating temperature 50 °C 50 °C 50 °C 50 °C
Min. storage temperature -35 °C -35 °C -35 °C -35 °C
Max. storage temperature 80 °C 80 °C 80 °C 80 °C
Temperature compensation yes yes yes yes
Thread M18 M18 M18 M18
Torque 50 N m 50 N m 1 N m 1 N m
Weight 100 g 100 g 70 g 70 g
Connector type M12 5-pol. M12 5-pol. M12 5-pol. M12 5-pol.
CE label yes yes yes yes
UL certification yes yes yes yes
ATEX yes yes yes yes
Version gas II 3G Ex ec nC IIC T6 Gc II 3G Ex ec nC IIC T6 Gc II 3G Ex ec nC IIC T6 Gc II 3G Ex ec nC IIC T6 Gc
Version dust II 3D Ex tc IIIB T80°C Dc II 3D Ex tc IIIB T80°C Dc II 3D Ex tc IIIB T80°C Dc II 3D Ex tc IIIB T80°C Dc
