Desenho técnico

1/1
153_technical_drawing
Tela cheia
1/1

Características do artigo

  • 153210
  • 153220
  • 153230
  • Max. switching voltage
  • Max. switching voltage
  • Max. switching current
  • Max. switching power
  • Contact form
  • Technology
  • LED display
  • Actuation
  • Switching principle
  • Dimensions
  • Housing design
  • Housing material
  • Cable material
  • Protection class
  • Operating temperature min.
  • Max. operating temperature
  • Min. storage temperature
  • Max. storage temperature
  • Min. cable temperature range, moving
  • Max. cable temperature range, moving
  • Min. cable temperature range, fixed installation
  • Max. cable temperature range, fixed installation
  • Mounting type
  • Cable length
Attribute153210153220153230
Bestellung
Bestellung
Max. switching voltage 48 V DC
Max. switching voltage 48 V AC
Max. switching current 0.5 A 1 A
Max. switching power 10 W
Contact form NO NC CO
Technology Reed
LED display No
Actuation arbitrary
Switching principle magnetic
Dimensions 36x26x13
Housing design cuboid
Housing material PA6
Cable material PVC
Protection class IP67 DIN EN 60529
Operating temperature min. -25 °C
Max. operating temperature 70 °C 75 °C
Min. storage temperature -25 °C
Max. storage temperature 70 °C 75 °C
Min. cable temperature range, moving -5 °C -15 °C
Max. cable temperature range, moving 70 °C 80 °C
Min. cable temperature range, fixed installation -25 °C -40 °C
Max. cable temperature range, fixed installation 70 °C 80 °C
Mounting type screwed
Cable length 1 m
1/2

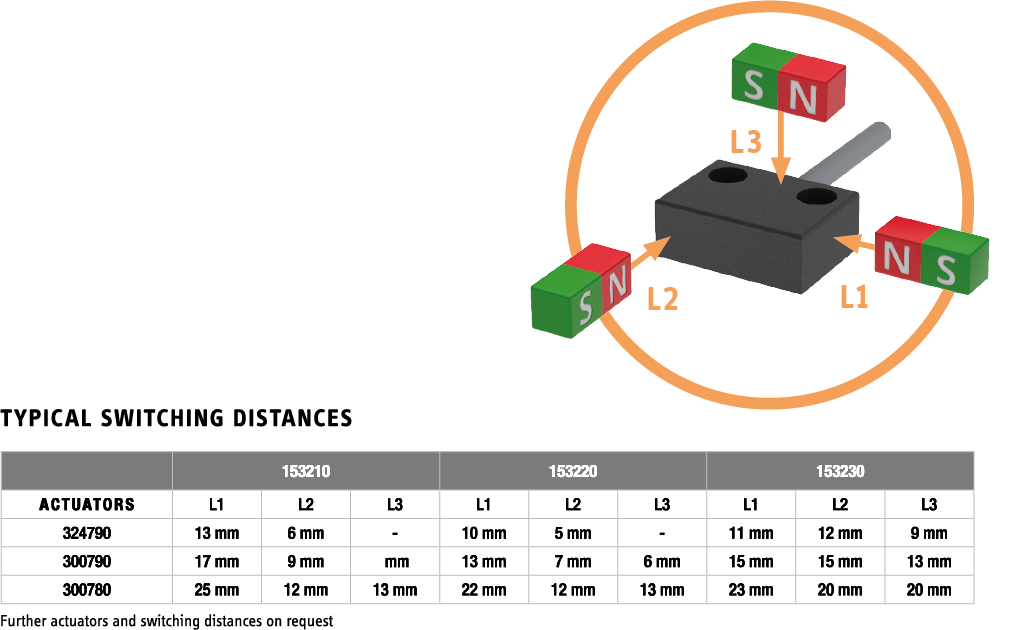

153_switching_dist_04-2021
Tela cheia
1/2
2/2
153_ordering_key
Tela cheia
2/2
Downloads
Manual Magnetic sensors pdf 545,95 KB
