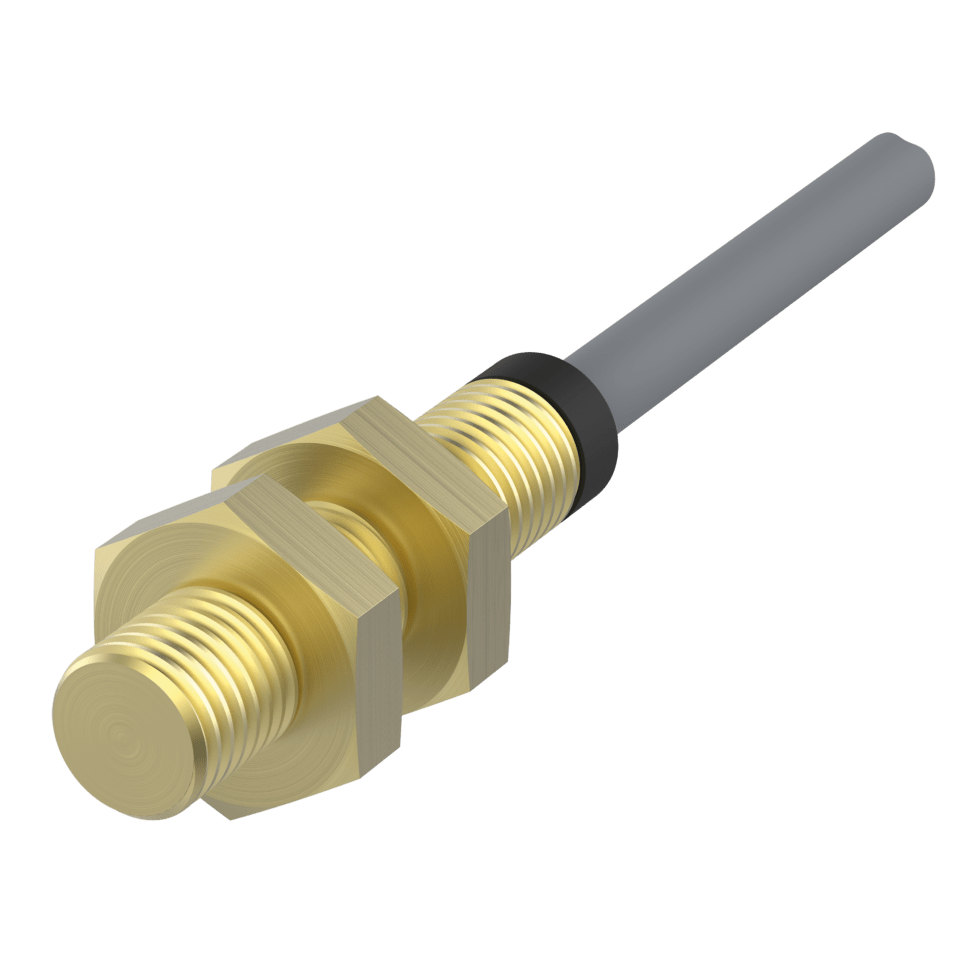

Sensor de proximidade magnético 128

Disponível no elostore

Sensor de proximidade magnético 128

Disponível no elostore
  • Sensor magnético
  • Design compacto, com formato cilíndrico com rosca externa para fácil instalação
  • Rosca M10 x 48 mm
  • Cabo em PVC
  • Tensão até 250 V

Este produto também está disponível em nossa elo.store.

Desenho técnico

1/2
Cat_SENS_ROS_128_Messing_DRW1_ML
Tela cheia
1/2
2/2
Cat_SENS_ROS_128_Messing_CD_ML
Tela cheia
2/2

Características do artigo

  • 128210
  • Max. switching voltage
  • Max. switching voltage
  • Max. switching current
  • Max. switching power
  • Technology
  • Contact form
  • LED display
  • Actuation
  • Switching principle
  • Dimensions
  • Housing design
  • Housing material
  • Nut material
  • Cable material
  • Protection class
  • Operating temperature min.
  • Max. operating temperature
  • Min. storage temperature
  • Max. storage temperature
  • Min. cable temperature range, moving
  • Max. cable temperature range, moving
  • Min. cable temperature range, fixed installation
  • Max. cable temperature range, fixed installation
  • Mounting type
  • Cable length
Attribute128210
Bestellung
Bestellung
Max. switching voltage 48 V DC
Max. switching voltage 48 V AC
Max. switching current 0.5 A
Max. switching power 10 W
Technology Reed
Contact form NO
LED display No
Actuation arbitrary
Switching principle magnetic
Dimensions M10x1 L=48
Housing design cylindrical
Housing material Messing
Nut material Messing
Cable material PVC
Protection class IP67 DIN EN 60529
Operating temperature min. -25 °C
Max. operating temperature 75 °C
Min. storage temperature -25 °C
Max. storage temperature 75 °C
Min. cable temperature range, moving -5 °C
Max. cable temperature range, moving 70 °C
Min. cable temperature range, fixed installation -25 °C
Max. cable temperature range, fixed installation 70 °C
Mounting type Thread
Cable length 1 m
1/2

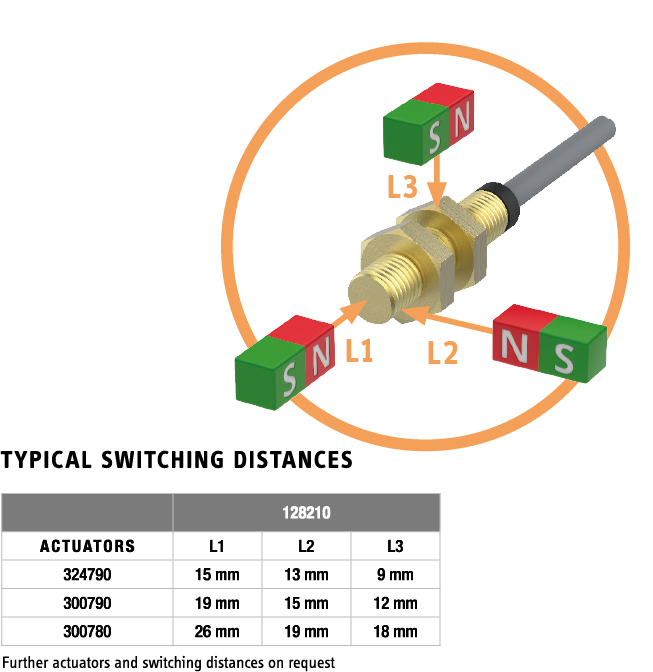

128_switching_dist_04-2021
Tela cheia
1/2
2/2
128_ordering_key_11_2019
Tela cheia
2/2
Downloads
Manual Magnetic sensors pdf 545,95 KB
