Desenho técnico

1/1
12261_technical_drawing
Tela cheia
1/1

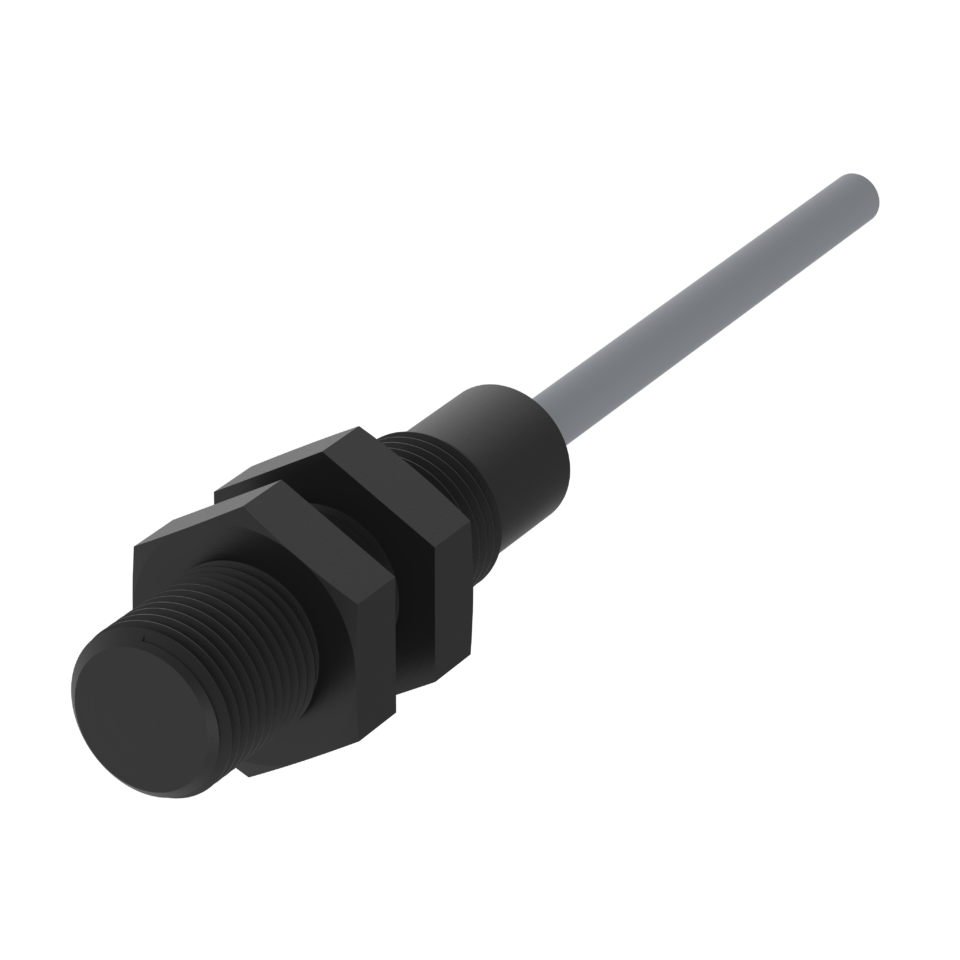

Características do artigo

  • 122610
  • 122611
  • Continuous current
  • Technology
  • EMC immunity (Norm)
  • EMC emission (Norm)
  • Operating voltage min.
  • Operating voltage max.
  • LED display
  • Actuation
  • Switching principle
  • Polarity reversal protection
  • Switching output
  • Dimensions
  • Housing design
  • Housing material
  • Nut material
  • Cable material
  • Protection class
  • Operating temperature min.
  • Max. operating temperature
  • Min. storage temperature
  • Max. storage temperature
  • Min. cable temperature range, moving
  • Max. cable temperature range, moving
  • Min. cable temperature range, fixed installation
  • Max. cable temperature range, fixed installation
  • Mounting type
  • Cable length
Attribute122610122611
Bestellung
Bestellung
Continuous current 0.1 A 0.02 A
Technology Hall
EMC immunity (Norm) DIN EN 60947-5-2, applicable chapter 7.2.6
EMC emission (Norm) DIN EN 60947-5-2, applicable chapter 7.2.6
Operating voltage min. 10 V DC 4.5 V DC
Operating voltage max. 30 V DC 24 V DC
LED display No
Actuation front
Switching principle magnetic
Polarity reversal protection yes
Switching output PNP NPN
Dimensions M12 L=46
Housing design cylindrical
Housing material PA
Nut material PA
Cable material PVC
Protection class IP67 DIN EN 60529
Operating temperature min. -25 °C
Max. operating temperature 75 °C
Min. storage temperature -25 °C
Max. storage temperature 75 °C
Min. cable temperature range, moving -5 °C
Max. cable temperature range, moving 70 °C
Min. cable temperature range, fixed installation -25 °C
Max. cable temperature range, fixed installation 70 °C
Mounting type Thread
Cable length 1 m
1/2

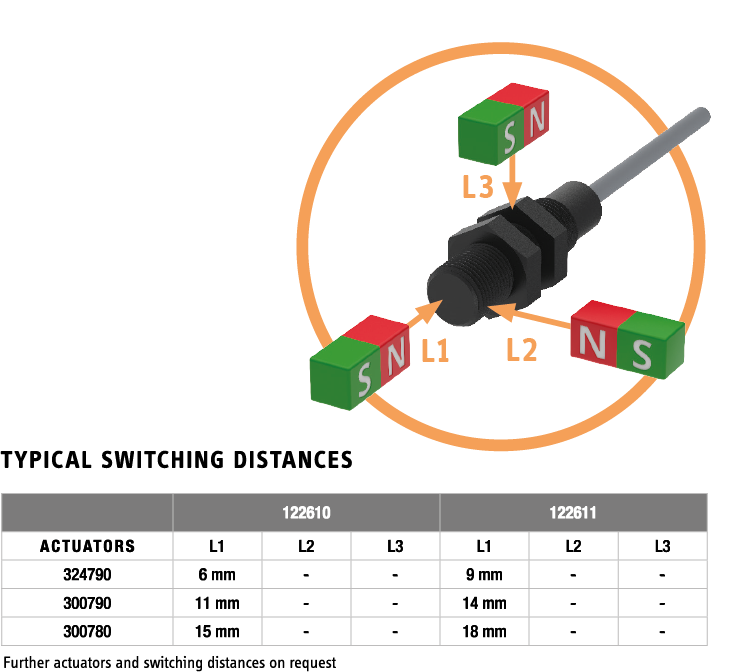

12261_switching_dist_04-2021
Tela cheia
1/2
2/2
12261_ordering_key
Tela cheia
2/2
Downloads
Manual Magnetic sensors pdf 545,95 KB
