Sensor de ângulo 424R

Disponível no elostore

Sensor de ângulo 424R

Disponível no elostore
  • Durabilidade e confiabilidade de medição devido à tecnologia de sensores de efeito Hall
  • Classe de proteção IP67
  • Temperatura de trabalho -40 °C até +85 °C
  • Resolução 0.1°
  • Sinal de saída em tensão ou corrente
  • Sinal de saída redundate
  • Conector AMP (Micro Quadlock) ou Deutsch DT04-6P

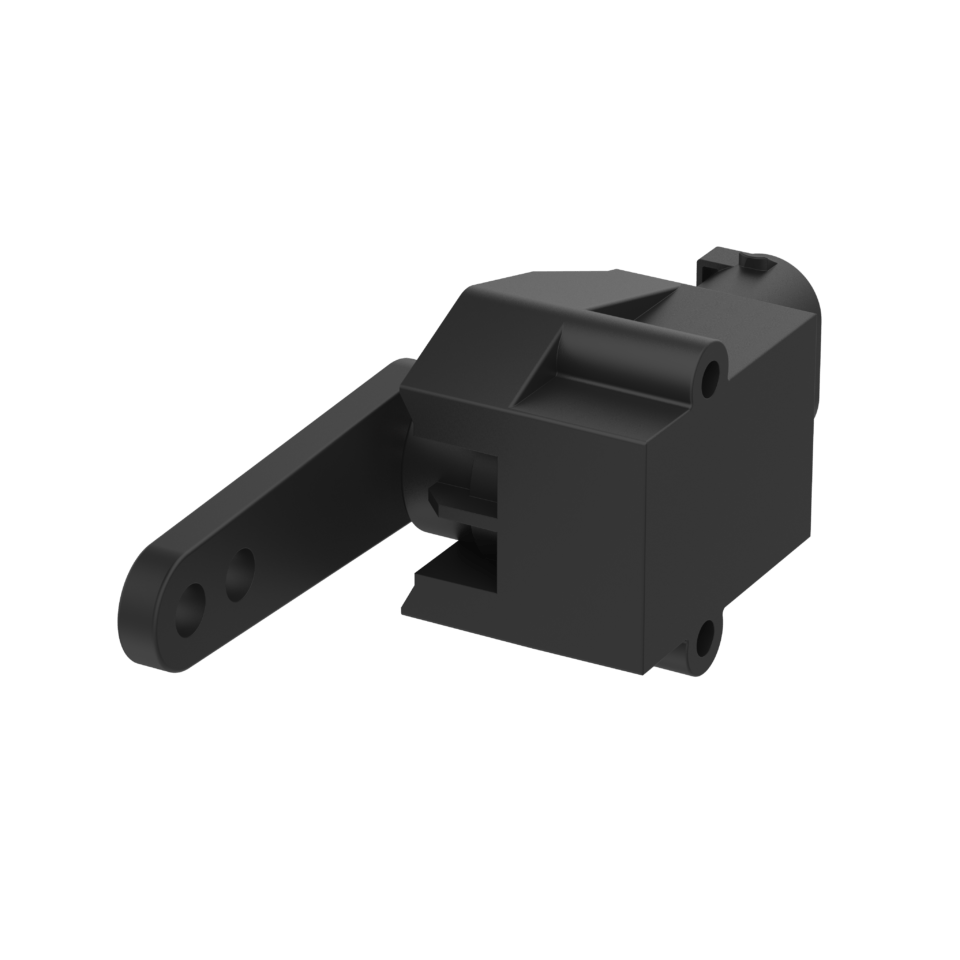

O sensor de ângulo modelo 424R oferece sinal de saída analógico redundante, ideal para aplicações que exijam elevado nível de segurança. O sensor 424R tem range de medição de 30 ° até 120 °. Extremamente confiável e com elevada vida útil devido à tecnologia de sensores de efeito Hall. O sensor pode ser aplicado em manipuladores telescópicos, plataformas de elevação, bem como em muitas outras aplicações em equipamentos móbil.

Este produto também está disponível em nossa elo.store.

Desenho técnico

1/2
424R_technical_dr_01
Tela cheia
1/2
2/2
424R_technical_dr_02
Tela cheia
2/2

Características do artigo

  • 424R..11...
  • 424R..66...
  • 424R..77...
  • Polarity reversal protection
  • Output signal min.
  • Output signal max.
  • Output signal min.
  • Output signal max.
  • Output signal - centre position/zero position
  • Output signal - centre position/zero position
  • Resolution
  • Operating voltage min.
  • Operating voltage max.
  • Current consumption
  • Load resistance min.
  • Load resistance max.
  • Temperature coefficient
  • Signal sequence
  • Signal update rate
  • Outputs (quantity, type)
  • Technology
  • Angle measuring range
  • Outputs
  • MTTF
  • Typical linearity error
  • EMC Agricultural and forestry machines (Norm)
  • EMC Earth-moving and building construction machinery (Norm)
  • EMC Industrial trucks (Norm)
  • Max. shaft load, axial
  • Max. shaft load, radial
  • Bearing
  • Mechanical stop
  • Actuating lever
  • Protection class
  • Operating temperature min.
  • Max. operating temperature
  • Min. storage temperature
  • Max. storage temperature
  • Torque for fastening screws
  • Connector type
Attribute424R..11...424R..66...424R..77...
Bestellung
Bestellung
Polarity reversal protection yes
Output signal min. 0.5 V DC
Output signal max. 4.5 V DC
Output signal min. 4 mA
Output signal max. 20 mA
Output signal - centre position/zero position 2.5 V DC
Output signal - centre position/zero position 12 mA
Resolution 0.1 °
Operating voltage min. 10 V DC 4.5 V DC 10 V DC
Operating voltage max. 30 V DC 5.5 V DC 30 V DC
Current consumption 18 mA 8 mA 10 mA
Load resistance min. 20000 Ohm
Load resistance max. 250 Ohm
Temperature coefficient typ. ±250 ppm/K
Signal sequence CCW/CW (opposite)
Signal update rate 2000 Hz
Outputs (quantity, type) 2
Technology Hall
Angle measuring range 30° ... 120 °
Outputs 4...20mA 0,5...4,5V ratiometric 0,5...4,5V
MTTF 205.9 a 237.3 a 144.5 a
Typical linearity error <= ±15°:±0,2°
<= ±25°:±0,4°
<= ±35°:±1,0°
<= ±45°:±2,0°
<= ±60°:±5,0°
EMC Agricultural and forestry machines (Norm) EN ISO 14982
pulse 5b: max. voltage 56V (absolute), functional status C for pulse 1 and 4
EN ISO 14982
conducted disturbance not applicable for 5V supply
EN ISO 14982
pulse 5b: max. voltage 56V (absolute), functional status C for pulse 1 and 4
EMC Earth-moving and building construction machinery (Norm) DIN EN ISO 13766-1
pulse "load dump": max. voltage 56V (absolute)
DIN EN ISO 13766-1
conducted disturbance not applicable for 5V supply
DIN EN ISO 13766-1
pulse "load dump": max. voltage 56V (absolute)
EMC Industrial trucks (Norm) DIN EN 12895
Max. shaft load, axial 50 N
Max. shaft load, radial 100 N
Bearing Ball bearing
Mechanical stop Optional
Actuating lever Selectable
Protection class IP67 DIN EN 60529
Operating temperature min. -40 °C
Max. operating temperature 85 °C
Min. storage temperature -40 °C
Max. storage temperature 85 °C
Torque for fastening screws 2.5 N m
Connector type Deutsch DT04-6P
1/1
424R_ordering-key_01-2022
Tela cheia
1/1
