Características do artigo

  • L0BC...B01
  • L0CC...B01
  • Cable material
  • Operating temperature min.
  • Max. operating temperature
  • Min. storage temperature
  • Max. storage temperature
  • Connector type
  • Cable diameter
  • Number of pins
  • Number of strands
  • Wire cross section
  • Cable length
AttributeL0BC...B01L0CC...B01
Bestellung
Bestellung
Cable material PVC
Operating temperature min. -25 °C
Max. operating temperature 70 °C
Min. storage temperature -25 °C
Max. storage temperature 70 °C

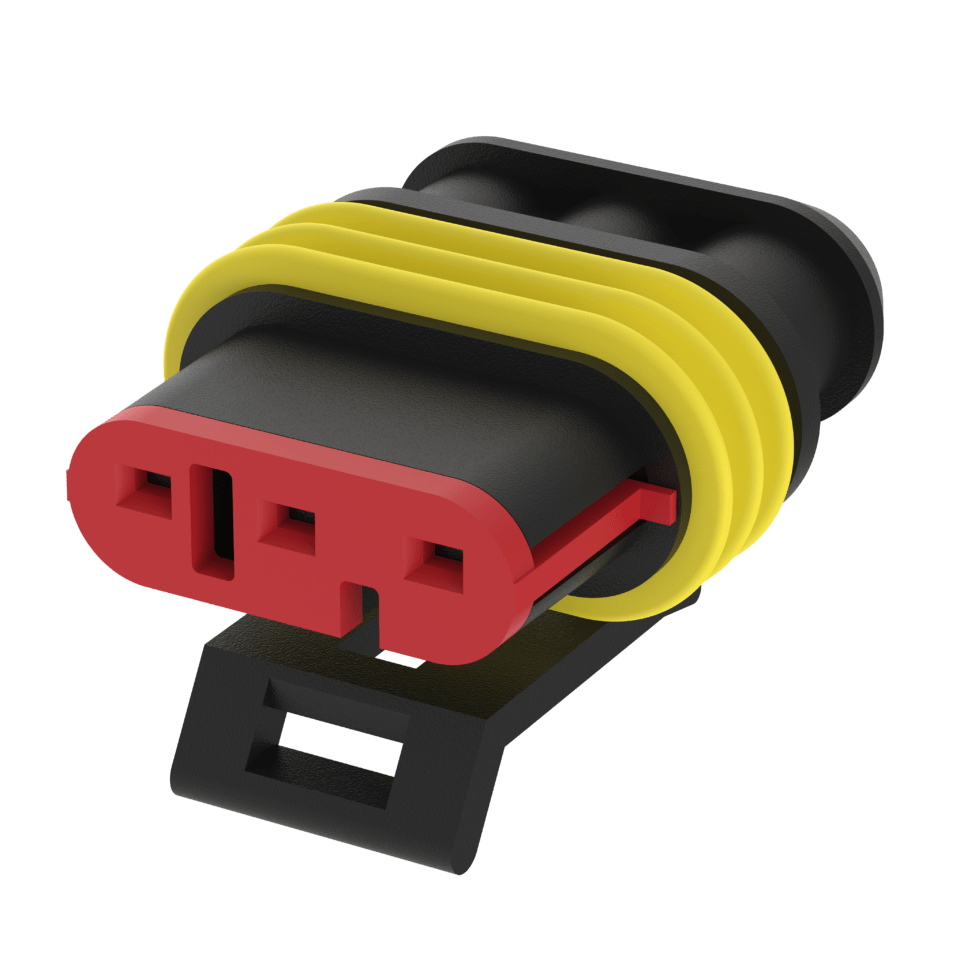

Connector type AMP Superseal socket
Cable diameter 5,7 +/-0,1 mm 5,5 +/-0,2 mm
Number of pins 2 3
Number of strands 2 3
Wire cross section 0.5 mm²
Cable length Selectable (1m, 3m, 5m, 10m)
