eloProtect E – Sensor de segurança RFID modelo 165ESK

Disponível no elostore
Avalie este produto

eloProtect E – Sensor de segurança RFID modelo 165ESK

Disponível no elostore
Avalie este produto
  • Sinal de saída à cabo ou através de conector M12
  • Tipo de contato: OSSD
  • LED opicional (3-cores)
  • Sinais de saída: 2
  • Sinal de saída/diagnóstico: 1
  • Sinais de entrada de segurança: 2
  • Classe de proteção IP6K9K (ISO 20653)
  • Dispositivo autônomo  (entrada EDM)
  • Design mais compacto disponível no mercado
  • Montagem em série de até 30 sensores
  • Tempo de resposta mais rápido

O sensor de segurança 165ESK eloProtectE utiliza a tecnologia RFID proporcionando ao usuário elevado nível de segurança graças à possibilidade de codificação individual entre sensor e atuador.  Como resultado, a proteção contra violação pode ser selecionada de acordo com a aplicação e aumenta a segurança da aplicação.

O uso da tecnologia RFID simplifica a montagem deste sensor devido às tolerâncias maiores de comutação entre sensor e atuador.

O monitoramento direto através da entrada EDM é possível graças à eletrônica de avaliação integrada ao sensor e à alta capacidade de comutação. Devido à alta capacidade de chaveamento das saídas (400mA), um relé de segurança adicional nem sempre é necessário.

Este sensor RFID permite a instalação em série de até 30 sensores.

View my requests
 Comprar variantes  Baixar tudo

Este produto também está disponível em nossa elo.store.

Desenho técnico

1/3
Cat_MS_165_ESK_DRW1
Tela cheia
1/3
2/3
Cat_MS_165_ESK_CON
Tela cheia
2/3
3/3
Cat_MS_165_ESK_CD
Tela cheia
3/3

Características do artigo

  • 165ESK00J11
  • 165ESK00J12
  • 165ESK00J21
  • 165ESK00J22
  • 165ESK00J31
  • 165ESK00J32
  • 165ESK00K11
  • 165ESK00K12
  • 165ESK00K21
  • 165ESK00K22
  • 165ESK00K31
  • 165ESK00K32
  • Max. switching current at safety output
  • Max. switching current at control output
  • Contact form
  • Switching frequency
  • Assured switching distance (Sao)
  • Assured switch-off distance (Sar)
  • Minimum switching distance (S0 min)
  • Polarity reversal protection
  • Number of electronic safety outputs
  • Number of electronic control outputs
  • Number of safety inputs
  • EDM/start input
  • Start function
  • Utilization category
  • No-load current I0
  • Rated operating voltage (Ue)
  • Rated insulation voltage (Ui)
  • Rated impulse withstand voltage (Uimp)
  • Current consumption per input
  • Power consumption
  • LED display
  • Actuation
  • Switching principle
  • Hysteresis
  • wurde angepasst (Number)
  • Technology
  • Coding variant
  • Pollution degree
  • Rated switching distance (Sn)
  • Overvoltage category
  • Active surface (Number)
  • Turn-on delay (ton)
  • Readiness delay (tv)
  • Voltage drop (Ud)
  • Stabilised PELV/SELV power supply
  • Fuse operating voltage
  • Internal electronic fuse
  • Short-circuit detection
  • Cross-short detection
  • PL acc. to EN ISO 13849-1
  • SIL acc. to IEC 61508
  • SIL CL acc. to IEC 62061
  • PFHD according to IEC 61508
  • Category acc. to EN ISO 13849-1
  • Coding acc. to EN ISO 14119
  • Type acc. to EN ISO 14119
  • Mission time in years
  • Structure acc. to EN ISO 13849-1
  • Hardware fault tolerance (HFT) according to IEC 61508
  • Housing design
  • Dimensions
  • Free zone
  • Actuation frequency
  • Minimum installation distance (between two sensors)
  • cannot be mounted flush
  • Housing material
  • Cable material
  • Housing colour
  • Protection class, connector
  • Operating temperature min.
  • Max. operating temperature
  • Min. cable temperature range, moving
  • Max. cable temperature range, moving
  • Min. cable temperature range, fixed installation
  • Max. cable temperature range, fixed installation
  • Shock resistance (Norm)
  • Vibration resistance (Norm)
  • Protection class, housing
  • Min. storage temperature
  • Max. storage temperature
  • Continuous shock resistance (Norm)
  • Relative humidity
  • Air pressure
  • Delta tmax
  • Mounting type
  • Weight
  • Torque for fastening screws
  • Connector type
  • Cable type
  • Cable length
  • Number of strands
  • Wire cross section
  • Cable colour
  • Certified in accordance with
  • CE label
  • Possible actuators
Attribute165ESK00J11165ESK00J12165ESK00J21165ESK00J22165ESK00J31165ESK00J32165ESK00K11165ESK00K12165ESK00K21165ESK00K22165ESK00K31165ESK00K32
Bestellung
Bestellung
Max. switching current at safety output 0.4 A 0.4 A
Max. switching current at control output 0.05 A 0.05 A
Contact form OSSD OSSD
Switching frequency 3 Hz 3 Hz
Assured switching distance (Sao) 8 mm 8 mm
Assured switch-off distance (Sar) 18 mm 18 mm
Minimum switching distance (S0 min) 0.5 mm 0.5 mm
Polarity reversal protection yes yes
Number of electronic safety outputs 2 2
Number of electronic control outputs 1 1
Number of safety inputs 2 2
EDM/start input yes yes
Start function automatic monitored automatic monitored automatic monitored automatic monitored automatic monitored
Utilization category AC-12 / DC-13 AC-12 / DC-13
No-load current I0 30 mA 30 mA
Rated operating voltage (Ue) 24 V 24 V
Rated insulation voltage (Ui) 50 V 50 V
Rated impulse withstand voltage (Uimp) 1000 V 1000 V
Current consumption per input 2.75 mA 2.75 mA
Power consumption 24 W 24 W
LED display three-coloured three-coloured
Actuation arbitrary arbitrary
Switching principle electronic electronic
Hysteresis 2 mm 2 mm
wurde angepasst (Number) 30 30
Technology RFID RFID
Coding variant coded unikat individually coded coded unikat individually coded
Pollution degree 2 2
Rated switching distance (Sn) 12 mm 12 mm
Overvoltage category II II
Active surface (Number) 1 1
Turn-on delay (ton) 75 ms 75 ms
Readiness delay (tv) 1000 ms 1000 ms
Voltage drop (Ud) 0.75 V 0.75 V
Stabilised PELV/SELV power supply required required
Fuse operating voltage 1A fast 1A fast
Internal electronic fuse yes yes
Short-circuit detection yes yes
Cross-short detection yes yes
PL acc. to EN ISO 13849-1 e e
SIL acc. to IEC 61508 3 3
SIL CL acc. to IEC 62061 3 3
PFHD according to IEC 61508 2,24x10^-9 1/h 2,24x10^-9 1/h
Category acc. to EN ISO 13849-1 4 4
Coding acc. to EN ISO 14119 Low High Low High
Type acc. to EN ISO 14119 4 4
Mission time in years 20 a 20 a
Structure acc. to EN ISO 13849-1 Two-channel Two-channel
Hardware fault tolerance (HFT) according to IEC 61508 1 1
Housing design rectangular rectangular
Dimensions 25 x 88 x 13 mm 25 x 88 x 13 mm
Free zone 50 mm 50 mm
Actuation frequency 180 1/h 180 1/h
Minimum installation distance (between two sensors) 150 mm 150 mm
cannot be mounted flush yes yes
Housing material PBT, PC PBT, PC
Cable material PVC PVC
Housing colour grau, schwarz grau, schwarz
Protection class, connector IP67 / IP69K DIN EN 60529 –
Operating temperature min. -25 °C -25 °C
Max. operating temperature 70 °C 70 °C
Min. cable temperature range, moving -5 °C -5 °C
Max. cable temperature range, moving 80 °C 80 °C
Min. cable temperature range, fixed installation -30 °C -30 °C
Max. cable temperature range, fixed installation 80 °C 80 °C
Shock resistance (Norm) 30 g / 11 ms 30 g / 11 ms
Vibration resistance (Norm) 10 ... 55 Hz 10 ... 55 Hz
Protection class, housing IP67 DIN EN 60529 - IP6K9K ISO 20653 IP67 DIN EN 60529 - IP6K9K ISO 20653
Min. storage temperature -25 °C -25 °C
Max. storage temperature 70 °C 70 °C
Continuous shock resistance (Norm) 10 g / 16 ms 10 g / 16 ms
Relative humidity 5 - 85 % 5 - 85 %
Air pressure 860 - 1060 hPa 860 - 1060 hPa
Delta tmax 0.5 °C/min 0.5 °C/min
Mounting type screwed screwed
Weight 70 g 100 g
Torque for fastening screws 0.7 N m 0.7 N m
Connector type M12x1 - 8 polig –
Cable type LiYY LiYY
Cable length 0.15 m 1 m
Number of strands 8 8
Wire cross section 0.25 mm² 0.25 mm²
Cable colour grau grau
Certified in accordance with EN ISO 13849-1 IEC 61508 IEC 62061 EN 60947-5-3 UL 508 / CSA 22.17 EN ISO 13849-1 IEC 61508 IEC 62061 EN 60947-5-3 UL 508 / CSA 22.19 EN ISO 13849-1 IEC 61508 IEC 62061 EN 60947-5-3 UL 508 / CSA 22.21 EN ISO 13849-1 IEC 61508 IEC 62061 EN 60947-5-3 UL 508 / CSA 22.23 EN ISO 13849-1 IEC 61508 IEC 62061 EN 60947-5-3 UL 508 / CSA 22.25 EN ISO 13849-1 IEC 61508 IEC 62061 EN 60947-5-3 UL 508 / CSA 22.27 EN ISO 13849-1 IEC 61508 IEC 62061 EN 60947-5-3 UL 508 / CSA 22.16 EN ISO 13849-1 IEC 61508 IEC 62061 EN 60947-5-3 UL 508 / CSA 22.18 EN ISO 13849-1 IEC 61508 IEC 62061 EN 60947-5-3 UL 508 / CSA 22.20 EN ISO 13849-1 IEC 61508 IEC 62061 EN 60947-5-3 UL 508 / CSA 22.22 EN ISO 13849-1 IEC 61508 IEC 62061 EN 60947-5-3 UL 508 / CSA 22.24 EN ISO 13849-1 IEC 61508 IEC 62061 EN 60947-5-3 UL 508 / CSA 22.26
CE label yes yes
Possible actuators 165EBK001 165EBK001
1/2

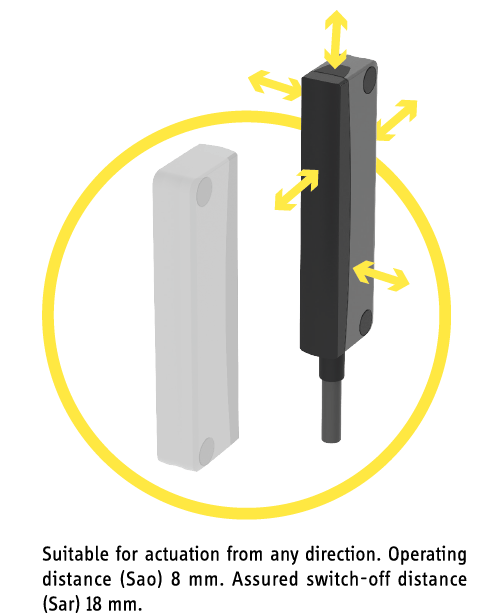

165ESK_switching-distance
Tela cheia
1/2
2/2
165ESK_ordering_key
Tela cheia
2/2

Variantes em elostore

Manual de operação
TÜV-Zertifikat eloProtect E pdf 396,87 KB
EC-Type eloProtect E pdf 313,01 KB
