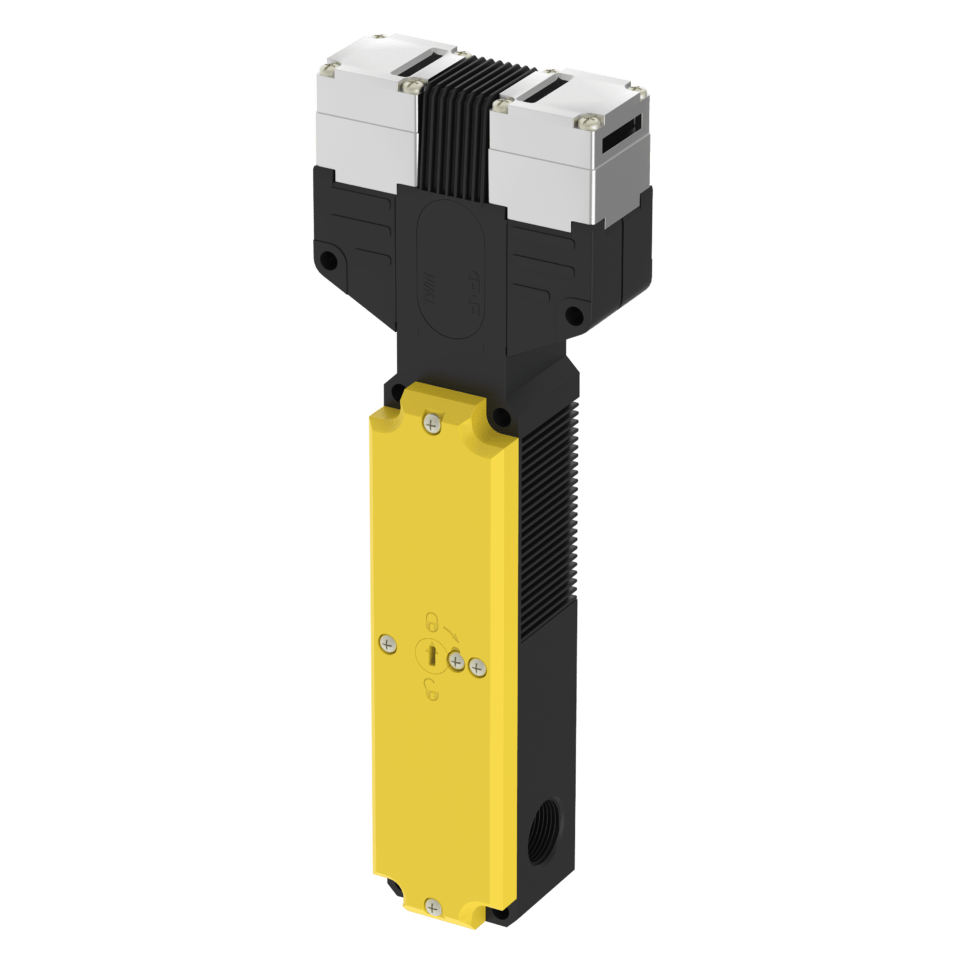

| Attribute | ZDA1121R | ZDA1220R | ZDR1121R | ZDR1220R |
|---|---|---|---|---|
| Bestellung |
|
|
|
|
| Bestellung | ||||
| Min. switching voltage | 24 V DC | |||
| Min. switching voltage | 24 V AC | |||
| Min. switching current | 1 A | |||
| Conv. thermal continuous current Ith | 4 A | |||
| Utilization category | AC-15 4A 230V / DC-13 4A 24V | |||
| Rated insulation voltage (Ui) | 250 V | |||
| Rated impulse withstand voltage (Uimp) | 2500 V | |||
| Magnet operating voltage +10%/-15% | 24 V AC/DC | |||
| Power consumption | 8 W | |||
| Power-on time ED | 100 % | |||
| Open-circuit principle | yes | – | ||
| Closed-circuit principle | – | yes | ||
| Switching principle | Slow-action switch | |||
| Short-circuit protection in accordance with IEC 60269-1 (fuse) | 4 A gG | |||
| Conditional short circuit current | 100 A | |||
| Pollution degree | 3 | |||
| B10d acc. to EN ISO 13849-1 | 5000000 | |||
| Type acc. to EN ISO 14119 | 2 | |||
| Mission time in years | 20 a | |||
| Service life, mechanical (Cycles) | 1 x 10^6 | |||
| Dimensions | 42 x 81 x 228 mm (H/B/T) | |||
| Emergency release present | no | |||
| Auxiliary unlocking device present | yes | |||
| Emergency unblocking present | no | |||
| Locking force Fmax | 2500 N | |||
| Locking force FzH | 2000 N | |||
| Immersion depth | 24.5 mm | |||
| Overrun max. | 5 mm | |||
| Number of N.C. door position | 1 | 0 | 1 | 0 |
| Number of N.O. door position | 1 | |||
| Number of interlocks guard locking | 2 | |||
| Number of N.O. guard locking | 0 | 1 | 0 | 1 |
| Number of interlocks door position | 0 | |||
| Operating speed max. | 20 m/min | |||
| Actuation frequency | 1200 1/h | |||
| Actuation force/attraction force/retention force | 35 / 30 / 20 N | |||
| Housing material | Glasfaserverstaerkter Thermoplast | |||
| Housing colour | Gehaeuse schwarz / Deckel gelb | |||
| Contact material | Silberlegierung hauchvergoldet | |||
| Protection class | IP67 DIN EN 60529 | |||
| Operating temperature min. | -20 °C | |||
| Max. operating temperature | 50 °C | |||
| Min. storage temperature | -20 °C | |||
| Max. storage temperature | 50 °C | |||
| Mounting type | screwed | |||
| Weight | 500 g | |||
| Installation | arbitrary | |||
| Connection type | 3 x M20 x 1,5 Kabelverschraubung | |||
| Min. connection cross section | 0.34 mm² | |||
| Max. connection cross section | 1.5 mm² | |||
| Certified in accordance with | EN ISO 60947-5-1 GS-ET-19 UL 508 / CSA 22.2 | |||
| CE label | yes | |||
