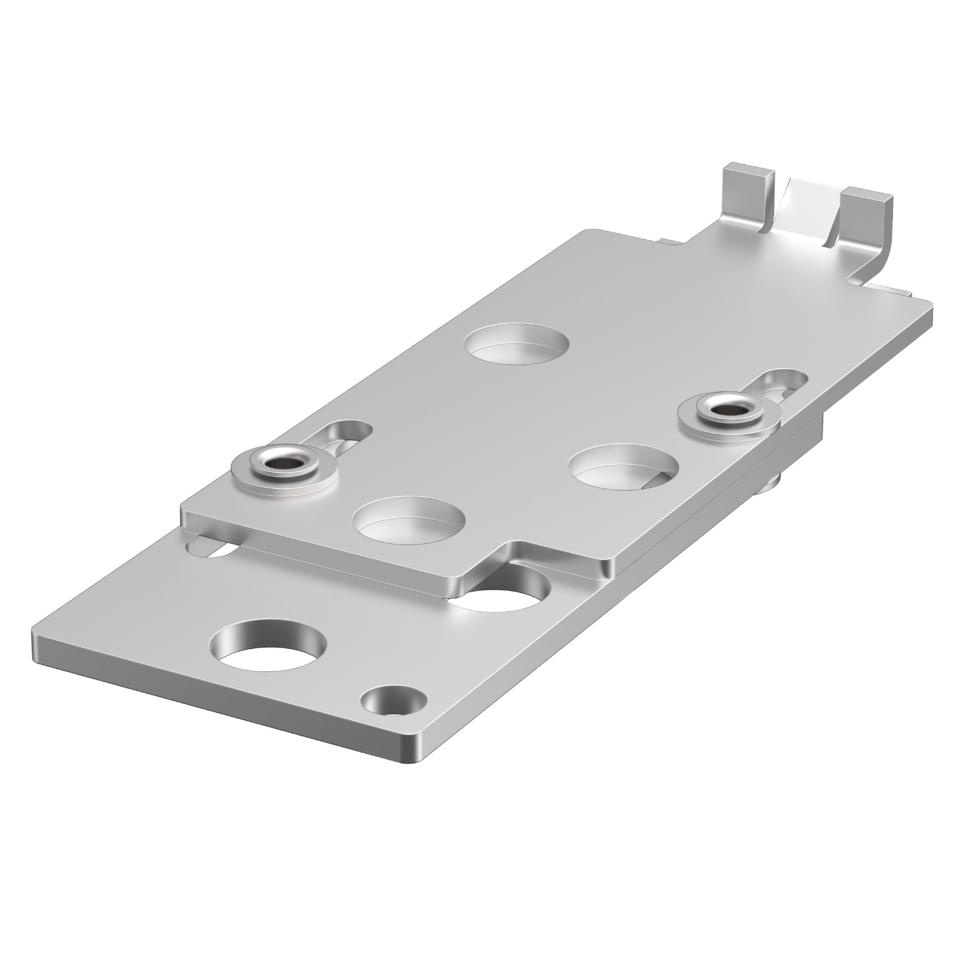

Dispositivo de bloqueio

Dispositivo de bloqueio

  • Material: aço inox 1.4301

O fechamento involuntário da porta de proteção é impedido pelo dispositivo de bloqueio. O parafuso é fixado por 3 orifícios de Ø 7,2 mm. Um parafuso de 4,5 mm a 7,0 mm assegura a função de travamento.

Para travar o cabeçote do atuador, o parafuso deve ser inserido no cabeçote do atuador na posição aberta.

Em seguida, o alimentador é inserido no cabeçote do atuador até que os orifícios se sobreponham.

Desenho técnico

1/1
ZE0S-01
Tela cheia
1/1

Características do artigo

  • ZE0S
  • Pin diameter
  • Number of bore holes
  • Dimensions
  • Housing material
  • Mounting type
AttributeZE0S
Bestellung
Bestellung
Pin diameter 4,5 - 7 mm
Number of bore holes 3
Dimensions 76 x 28 x 3 mm (H/B/T)
Housing material Edelstahl 1.4308
Mounting type inserted
