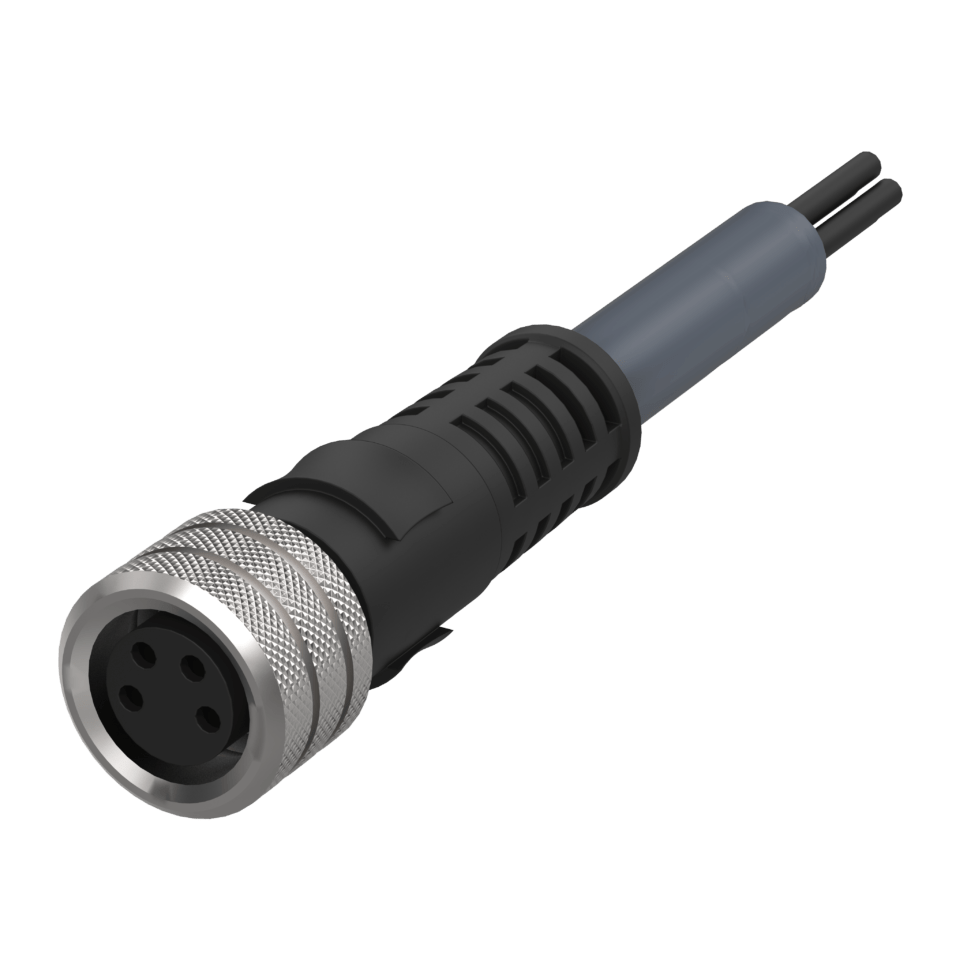

Conector K04.00

Conector K04.00

  • Cabos pré-montados com extremidade aberta e descascada
  • Conector M8 compatível com todos os sensores com conector circular de 4 pinos e rosca M8
  • Elevada classe de proteção
  • Vários comprimentos de cabo disponíveis

Para sensores com conector M18 com 4-pinos.

Desenho técnico

1/3
Cat_K04_00__DRW
Tela cheia
1/3
2/3
Cat_K04_00__CON
Tela cheia
2/3
3/3
Cat_K04_00__CD
Tela cheia
3/3

Características do artigo

  • K04G...
  • K04H...
  • Max. switching current per contact
  • Rated impulse withstand voltage (Uimp)
  • Operating voltage max.
  • Operating voltage max.
  • Nut material
  • Overmould material
  • Cable material
  • Min. cable temperature range, moving
  • Max. cable temperature range, moving
  • Min. cable temperature range, fixed installation
  • Max. cable temperature range, fixed installation
  • Min. storage temperature
  • Max. storage temperature
  • Torque for nuts
  • Connector type
  • Cable colour
  • Cable length
  • Cable diameter
  • Number of pins
  • Number of strands
  • Wire cross section
  • Cable type
  • Certified in accordance with
AttributeK04G...K04H...
Bestellung
Bestellung
Max. switching current per contact 3 A
Rated impulse withstand voltage (Uimp) 800 V
Operating voltage max. 30 V DC
Operating voltage max. 30 V AC
Nut material Brass
Overmould material PUR
Cable material PVC PUR
Min. cable temperature range, moving -25 °C
Max. cable temperature range, moving 85 °C
Min. cable temperature range, fixed installation -25 °C
Max. cable temperature range, fixed installation 85 °C
Min. storage temperature -25 °C
Max. storage temperature 85 °C
Torque for nuts 0,5 N m
Connector type M8 socket, straight
Cable colour Black
Cable length 10 m
Cable diameter 5 mm
Number of pins 4
Number of strands 4
Wire cross section 0.25 mm²
Cable type LIYY
Certified in accordance with UL/CSA
1/1
K04_00_ordering_key
Tela cheia
1/1
