Características do artigo

  • 350ATC6K

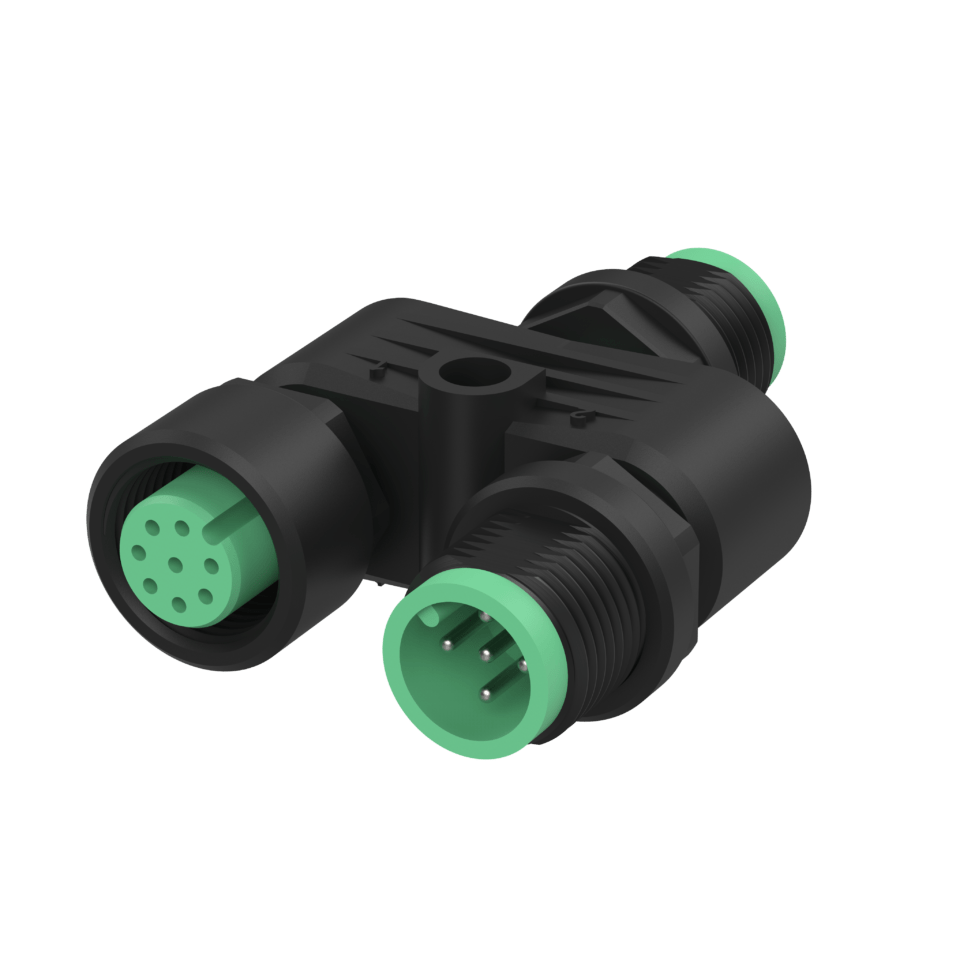

  • 350ATD7K
  • 350ATD8K
  • Max. switching current per contact
  • Rated impulse withstand voltage (Uimp)
  • Pollution degree
  • Operating voltage max.
  • Operating voltage max.
  • Nut material
  • Overmould material
  • Protection class, connector
  • Operating temperature min.
  • Max. operating temperature
  • Min. storage temperature
  • Max. storage temperature
  • Torque for nuts
  • Weight
  • Connector type
  • Connection type
  • Number of pins
  • Certified in accordance with
Attribute350ATC6K350ATD7K350ATD8K
Bestellung
Bestellung
Max. switching current per contact 2 A 4 A
Rated impulse withstand voltage (Uimp) 800 V
Pollution degree 3
Operating voltage max. 30 V DC 60 V DC
Operating voltage max. 30 V AC 60 V AC
Nut material PA
Overmould material PA
Protection class, connector IP67 DIN EN 60529
Operating temperature min. -25 °C
Max. operating temperature 85 °C
Min. storage temperature -25 °C
Max. storage temperature 85 °C
Torque for nuts 0,6 N m
Weight 16 g 17 g 15 g
Connector type M12 Stecker gerade
Connection type geschraubt / gesteckt
Number of pins 8/4/4 8/8/4 4/4/4
Certified in accordance with UL1977/CSA22.2 ECOLAB
