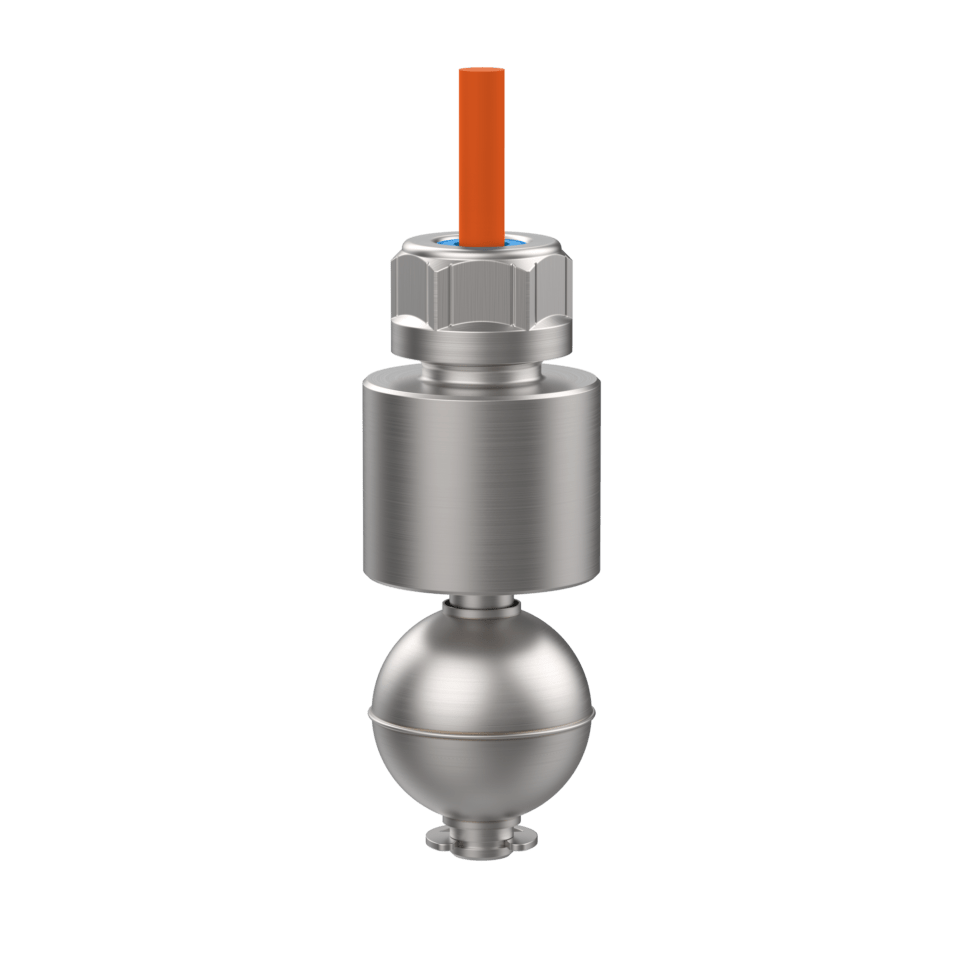

Immersion float switch

Immersion float switch

  • Immersion float switch
  • Level measurement on reed contact basis
  • Mounting on cable via cable gland and optional mounting module
  • Materials: Stainless steel float switch with PUR cable and PVC float switch with PVC cable
  • Switching voltage max. 48 V
  • Contact type: normally open contact
  • Temperature range: -40°C to +90°C (stainless steel), -10°C to +65°C (PVC)
  • Protection class: IP68 DIN EN 60529

The elobau immersion float switch, based on robust and reliable reed technology, is typically used for limit level monitoring in large tanks. Areas of application include monitoring the empty or overflow of liquids such as water, oil or other chemicals. The submersible float switch is convincing due to its robust design and maximum flexibility: the switching point height can be variably adjusted using the optionally available mounting modules with cable gland and the switching function can be reversed by turning the float.

Desenho técnico

1/2
Cat_LEV_20991102_VA_DRW1_opt
Tela cheia
1/2
2/2
Cat_LEV_20991102_VA_CD_opt
Tela cheia
2/2

Características do artigo

  • 2ES0001
  • 2ES0003
  • 2ES1001
  • 2ES1002
  • Min. switching voltage
  • Max. switching voltage
  • Min. switching voltage
  • Max. switching voltage
  • Min. switching current
  • Max. switching current
  • Min. switching power
  • Max. switching power
  • Contact form
  • Output signal
  • Technology
  • Change of switching function by turning the float
  • Switching point function
  • Recommended minimum density of the medium
  • Float diameter
  • Version
  • Diameter
  • Housing material
  • Float material
  • Riser material
  • Cable material
  • Protection class inside container
  • Operating temperature min.
  • Max. operating temperature
  • Pressure resistance
  • Installation
  • Mounting type
  • Mounting modules
  • Riser diameter
  • Riser length
  • Installation opening
  • Connector type
  • Cable length
Attribute2ES00012ES00032ES10012ES1002
Bestellung
Bestellung
Min. switching voltage 0 V DC
Max. switching voltage 48 V DC
Min. switching voltage 0 V AC
Max. switching voltage 48 V AC
Min. switching current 0 A
Max. switching current 0.5 A
Min. switching power 0 W
Max. switching power 50 W
Contact form 1A or 1B
Output signal digital
Technology Reed
Change of switching function by turning the float yes
Switching point function See data sheet
Recommended minimum density of the medium 0.8 g/cm³ 0.7 g/cm³
Float diameter 25 mm 29 mm
Version Straight
Diameter 40 mm 30 mm
Housing material PVC VA
Float material PVC VA
Riser material PVC VA
Cable material PVC PUR
Protection class inside container IP68 DIN EN 60529
Operating temperature min. -10 °C -40 °C
Max. operating temperature 65 °C 90 °C
Pressure resistance 3 bar
Installation from above
Mounting type -
Mounting modules 35020501 , 35020502
Riser diameter 8 mm
Riser length 38 mm 40 mm
Installation opening min.40mm min.30mm
Connector type ohne
Cable length 1 m 5 m 1 m 5 m
Downloads
Instruction manual immersion float switches pdf 8,48 MB
