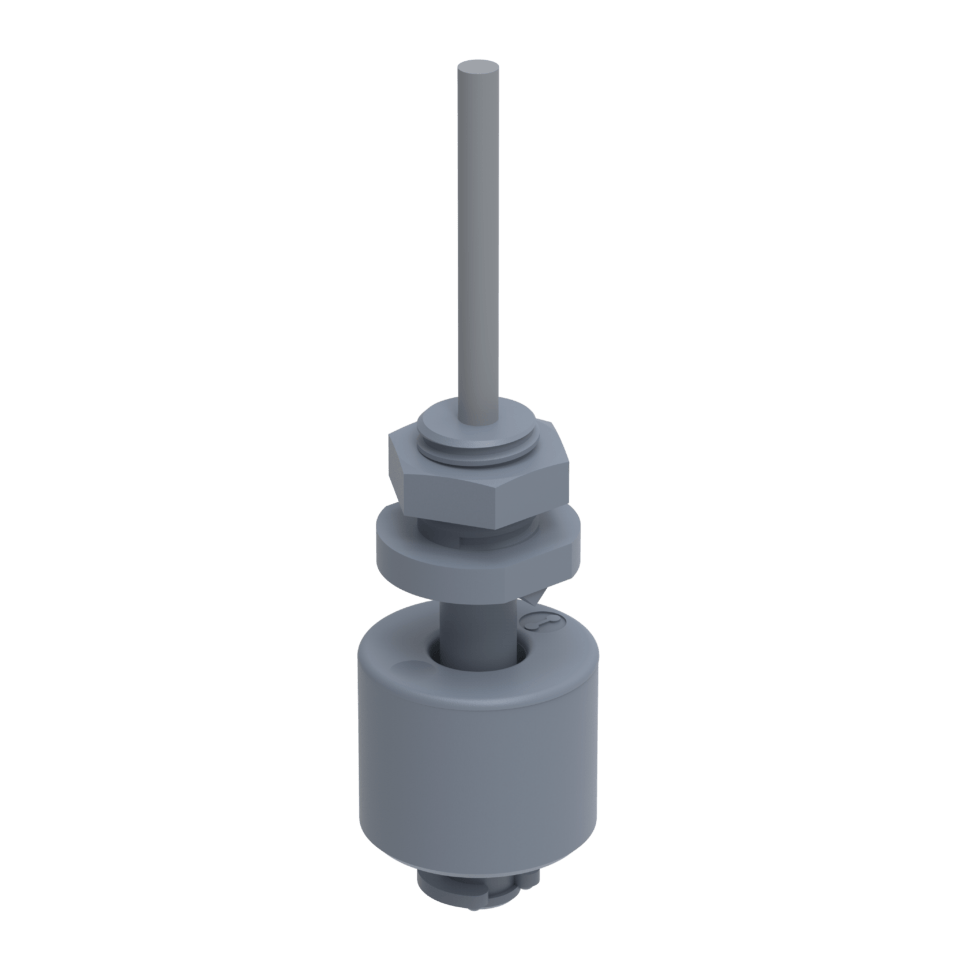

Boia de nível magnética 2000

Disponível no elostore

Boia de nível magnética 2000

Disponível no elostore
  • Rosca PG 7
  • Com sistema de engate rápido para fácil instalação
  • Material: cabo em PVC (outros materiais sob consulta: PP, PVDF ou PA)
  • Tensão máx.. 48 V
  • Tipo de contato: NA, NF e changeover
  • Temperatura de trabalho (PVC) de -10 °C até +65 °C
  • Classe de proteção IP67

A boia de nível elobau modelo 2000.0 com rosca PG 7 é muito utilizada em aplicações médico-hospitalares. Devido à seu design compacto e medição confiável, é ideal também para monitoramento de nível em tanques de processamento de água. Além disto, a boia de nível modelo 2000.0 pode ser personalizada de acordo com a sua necessidade através de forma simples e rápida em nosso configurador de produto on-line.

Este produto também está disponível em nossa elo.store.

Desenho técnico

1/2
Cat_LEV_2000_0_Kunststoff_DRW1
Tela cheia
1/2
2/2
Cat_LEV_2000_0_Kunststoff_CD
Tela cheia
2/2

Características do artigo

  • 200010
  • 200020
  • 200030
  • Max. switching voltage
  • Max. switching voltage
  • Max. switching current
  • Max. switching power
  • Contact form
  • Output signal
  • Technology
  • Change of switching function by turning the float
  • Switching point function
  • Recommended minimum density of the medium
  • Float diameter
  • Version
  • Housing material
  • Float material
  • Riser material
  • Cable material
  • Protection class outside container
  • Protection class inside container
  • Operating temperature min.
  • Max. operating temperature
  • Pressure resistance
  • Installation
  • Mounting type
  • Thread
  • Riser diameter
  • Riser length
  • Installation opening
  • Torque
  • Connector type
  • Cable length
Attribute200010200020200030
Bestellung
Bestellung
Max. switching voltage 48 V DC
Max. switching voltage 48 V AC
Max. switching current 0.5 A 0.3 A
Max. switching power 10 W 3 W
Contact form 1A 1B 1C
Output signal digital
Technology Reed
Change of switching function by turning the float yes
Switching point function Rising level
Recommended minimum density of the medium 0.7 g/cm³
Float diameter 25 mm
Version Straight
Housing material PVC
Float material PVC
Riser material PVC
Cable material PVC
Protection class outside container IP67 DIN EN 60529
Protection class inside container IP68 DIN EN 60529
Operating temperature min. -10 °C
Max. operating temperature 65 °C
Pressure resistance 3 bar
Installation from inside
Mounting type Thread
Thread PG7
Riser diameter 8 mm
Riser length 43 mm
Installation opening PG7
Torque 2 N m
Connector type -
Cable length 1 m
1/1
2000_0_ordering-key
Tela cheia
1/1
Operating instructions and product information
Manual miniature float switches pdf 1,87 MB
