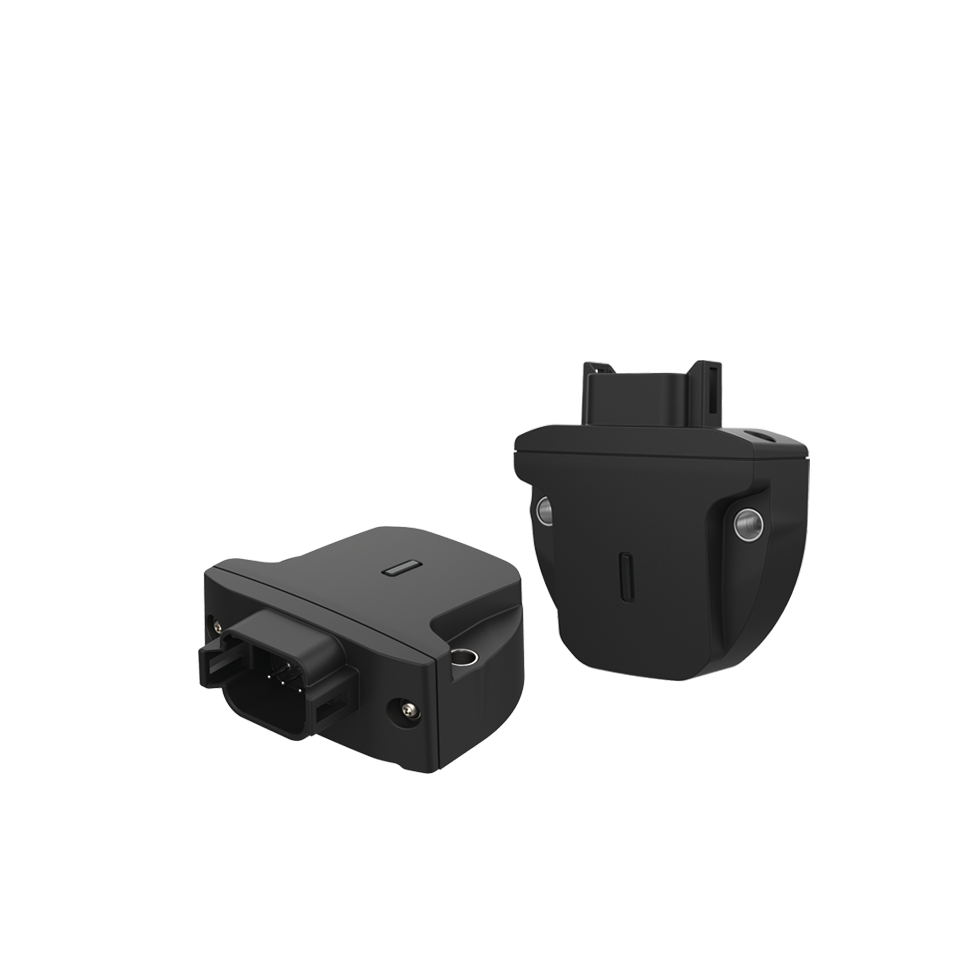

Tilt sensors N7 dynamic

  • High precision, even with fast movements, strong vibrations and shocks
  • Inertial Measurement Unit (IMU)
  • Output of acceleration, rotation rate and inclination
  • Precise signals for dynamic movements thanks to sensor fusion
  • EMC standards in accordance with off-highway standards (EN ISO 14982; DIN EN ISO 13766-1; DIN EN 12895)
  • Robust design for a long service life: protection class IP 67 (ISO 20653) / IP 6K9K (ISO 20653)
  • Temperature-resistant from -20 °C to +85 °C (-40 °C to +85 °C on request)
  • Connector types: Deutsch DT04-08PA, 1x M12 5-pin (male) or 2x M12 5-pin (male/female)
  • Daisy-Chain – Looping through the CAN signal without additional T-distributors
  • Fast installation thanks to efficient 2-point mounting
  • Smart variant management thanks to a clever modular system
  • E1 type approval for road approval
  • Parameter sets customised to the application to increase performance/accuracy (on request)
Configure online

1 Product in the category Tilt sensors N7 dynamic

Availabe in elostore
Tilt sensors N7 Archives - elobau

Tilt sensor N7 dynamic CAN

  • Precise measurement signal for dynamic mobile machinery

Precise signals for dynamic movements thanks to sensor fusion

Our N7 dynamic series tilt sensors are designed for demanding applications. With strong accelerations and sudden movements, conventional acceleration sensors reach their limits. That is why we have equipped the N7 dynamic with Sensor Fusion – a responsive combination of acceleration sensor and gyroscope.



Acceleration compensation

The N7 dynamic is ideal for dynamic mobile machines that are exposed to violent movements, shocks and vibrations. The acceleration sensor measures the inclination (like a static tilt sensor), while the gyroscope determines the rotation rate.

Sensor Fusion

Sensor Fusion is a proven method in which an intelligent software algorithm combines the signals from the two different measuring principles. By combining relevant measurement and empirical values, Sensor Fusion can be used to compensate for inaccuracies, correct errors and optimise the stability of the measured values of the N7 dynamic without delay. On request, we can provide parameter sets customised to your application in order to increase the performance and accuracy of the sensor.

Tilt sensors N7 Archives - elobau
A tilt sensor with Sensor Fusion significantly reduces the negative effects of jerky movements and ensures the provision of precise measurement data with short response times.
