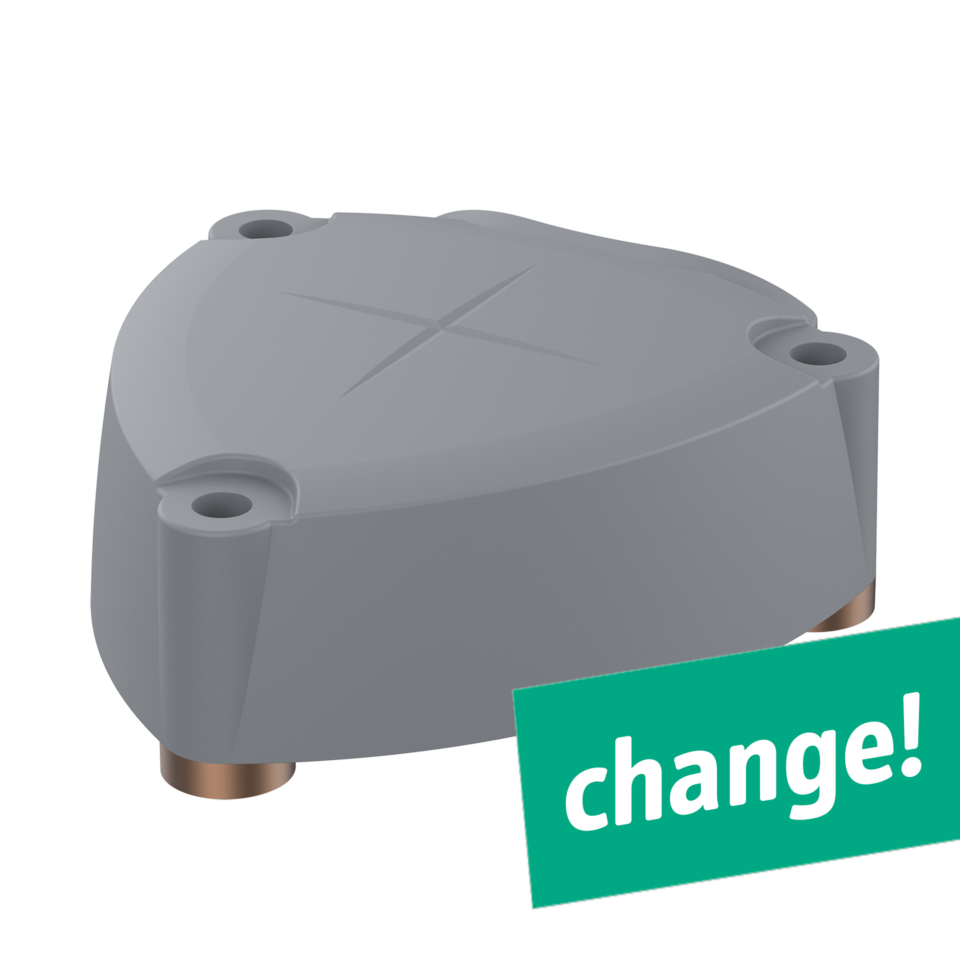

Tilt sensor N5

Long service life and reliability thanks to the mechanics-free MEMS technology
Inclination range single axis 360°, or double axis 180°
Up to 4 additional, freely configurable switching points
Selectable switch-on and switch-off delay per switching point
Adjustment of the zero position via CAN bus, or IR remote control
Protection class IP67
Operating range -40 °C to +85 °C
Deutsch or M12 plug
Daisy chain – looping through the CAN signal without additional T-distributors
Compact, flat and outdoor-suitable housing
Stack mounting for redundancy

The N5 tilt sensor with CAN-Bus interface is available as a CANopen or SAEJ1939 variant. It has a high impact and vibration resistance so is frequently used for tilt measurement in construction machinery, industrial trucks and adverse industrial environments. The N5 can be easily programmed and the neutral position adjusted with the corresponding infrared remote control.

View my requests

Download all

Article characteristics

N5ACJ...
N5ACJB...
N5ACO...
N5ACOB...
N5ECJ...
N5ECJB...
N5ECO...
N5ECOB...
N5GCJ...
N5GCO...
N5ICJ...
N5ICO...
N5KCJ...
N5KCO...
N5LCJ...
N5LCO...

Max. switching voltage
Max. switching current
Max. switching power
Polarity reversal protection
Resolution
Operating voltage min.
Operating voltage max.
Current consumption
Short-circuit resistance to GND
Short-circuit resistance to supply
Repeating accuracy
Signal update rate
Technology
Number of measurement axes (Number)
Angle measuring range
Initialisation time after power on/start-up time
Switching points
Zero justification
Vibration filter
Fieldbus system
Protocol
Node ID / Source Address
Transmitting cycle
Baud rate
Bus terminating resistor
MTTF
Switching output
Outputs
Turn-on delay
Turn-off delay
Connection type (switching output)
Temperature coefficient
Linearity error
Protection class
Operating temperature min.
Max. operating temperature
Min. storage temperature
Max. storage temperature
Shock resistance (Norm)
Vibration resistance (Norm)
Impact resistance (Norm)
EMC Agricultural and forestry machines (Norm)
EMC Earth-moving and building construction machinery (Norm)
EMC Industrial trucks (Norm)
Torque for fastening screws
Weight
Connection
CE label

Attribute	N5ACJ...	N5ACJB...	N5ACO...	N5ACOB...	N5ECJ...	N5ECJB...	N5ECO...	N5ECOB...	N5GCJ...	N5GCO...	N5ICJ...	N5ICO...	N5KCJ...	N5KCO...	N5LCJ...	N5LCO...
Bestellung
Bestellung
Max. switching voltage	–	48 V DC	–	48 V DC	–	48 V DC	–	48 V DC	–						–
Max. switching current	–	1 A	–	1 A	–	1 A	–	1 A	–						–
Max. switching power	–	30 W	–	30 W	–	30 W	–	30 W	–						–
Polarity reversal protection	yes						yes						yes
Resolution	0.014 °						0.014 °						0.014 °
Operating voltage min.	9 V DC						9 V DC						9 V DC
Operating voltage max.	32 V DC						32 V DC						32 V DC
Current consumption	100 mA						100 mA						100 mA
Short-circuit resistance to GND	yes	no	yes	no	yes	no	yes	no	yes						yes
Short-circuit resistance to supply	yes	no	yes	no	yes	no	yes	no	yes						yes
Repeating accuracy	< 0,3 °						< 0,3 °						< 0,3 °
Signal update rate	200 Hz						200 Hz						200 Hz
Technology	MEMS						MEMS						MEMS
Number of measurement axes (Number)	2		2 (X, Y) Z-axis for signaling the installation position		2					2 (X, Y) Z-axis for signaling the installation position	2			2 (X, Y) Z-axis for signaling the installation position	2
Angle measuring range	180 °				360/120 °				180 °		360/120 °		180 °		360/120 °
Initialisation time after power on/start-up time	500 ms						500 ms						500 ms
Switching points	–	Selectable from ±1.5°...±90 °	–	Selectable from ±1.5°...±90 °	–	Selectable from ±1.5°...±180 °	–	Selectable from ±1.5°...±180 °	–						–
Zero justification	±60°						±60°						±60°
Vibration filter	25 Hz						25 Hz						25 Hz
Fieldbus system	CAN						CAN						CAN
Protocol	J1939		CANopen		J1939		CANopen		J1939	CANopen	J1939	CANopen	J1939	CANopen	J1939	CANopen
Node ID / Source Address	0xE2		0x20		0xE2		0x20		0xE2	0x20	0xE2	0x20	0xE2	0x20	0xE2	0x20
Transmitting cycle	10 ms						10 ms						10 ms
Baud rate	250 kBit/s						250 kBit/s						250 kBit/s
Bus terminating resistor	no						no						no
MTTF	57.6 a						57.6 a						57.6 a
Switching output	–	2x NO	–	2x NO	–	2x NO	–	2x NO	–						–
Outputs	CAN J1939	CAN J1939 + relay	CANopen	CANopen + relay	CAN J1939	CAN J1939 + relay	CANopen	CANopen + relay	CAN J1939	CANopen	CAN J1939	CANopen	CAN J1939	CANopen	CAN J1939	CANopen
Turn-on delay	–	Selectable (0…2 s in 0.5s increments)	–	Selectable (0…2 s in 0.5s increments)	–	Selectable (0…2 s in 0.5s increments)	–	Selectable (0…2 s in 0.5s increments)	–						–
Turn-off delay	–	Selectable (0…2 s in 0.5s increments)	–	Selectable (0…2 s in 0.5s increments)	–	Selectable (0…2 s in 0.5s increments)	–	Selectable (0…2 s in 0.5s increments)	–						–
Connection type (switching output)	–	Selectable	–	Selectable	–	Selectable	–	Selectable	–						–
Temperature coefficient	± 0,02°/K						± 0,02°/K						± 0,02°/K
Linearity error	< ± 0,4°						< ± 0,4°						< ± 0,4°
Protection class	IP67 DIN EN 60529						IP67 DIN EN 60529						IP67 DIN EN 60529
Operating temperature min.	-40 °C						-40 °C						-40 °C
Max. operating temperature	85 °C						85 °C						85 °C
Min. storage temperature	-40 °C						-40 °C						-40 °C
Max. storage temperature	105 °C						105 °C						105 °C
Shock resistance (Norm)	500 m/s²;, 100 shocks per axis, DIN EN 60068-2-27						500 m/s²;, 100 shocks per axis, DIN EN 60068-2-27						500 m/s²;, 100 shocks per axis, DIN EN 60068-2-27
Vibration resistance (Norm)	Sine Vibration: 100 m/s²;, 19h, DIN EN 60068-2-6 Random Vibration: 80,1 m/s²;, 24h, DIN EN 60068-2-64						Sine Vibration: 100 m/s²;, 19h, DIN EN 60068-2-6 Random Vibration: 80,1 m/s²;, 24h, DIN EN 60068-2-64						Sine Vibration: 100 m/s²;, 19h, DIN EN 60068-2-6 Random Vibration: 80,1 m/s²;, 24h, DIN EN 60068-2-64
Impact resistance (Norm)	max. 50 g						max. 50 g						max. 50 g	max. 50g
EMC Agricultural and forestry machines (Norm)	DIN EN ISO 14982 pulse 5b: max. voltage 65 V (absolute), functional status C for pulse 1 and 4						DIN EN ISO 14982 pulse 5b: max. voltage 65 V (absolute), functional status C for pulse 1 and 4						DIN EN ISO 14982 pulse 5b: max. voltage 65 V (absolute), functional status C for pulse 1 and 4
EMC Earth-moving and building construction machinery (Norm)	DIN EN ISO 13766-1 pulse "load dump": max. voltage 65 V (absolute)						DIN EN ISO 13766-1 pulse "load dump": max. voltage 65 V (absolute)						DIN EN ISO 13766-1 pulse "load dump": max. voltage 65 V (absolute)
EMC Industrial trucks (Norm)	DIN EN 12895						DIN EN 12895						DIN EN 12895
Torque for fastening screws	6 N m						6 N m						6 N m
Weight	100 g						100 g						100 g
Connection	Deutsch 8-pol.						Deutsch 8-pol.		M12x1 5-pol.				2 x M12x1 5pol.
CE label	yes						yes						yes
