Sensors

elobau offers a variety of precise and contactless electronic sensors, using Hall, MEMS or magnetoresistive technology. The portfolio includes tilt, angle and proximity sensors, which are suited for precise measurements in numerous mobile and industrial applications.

  • Sensors

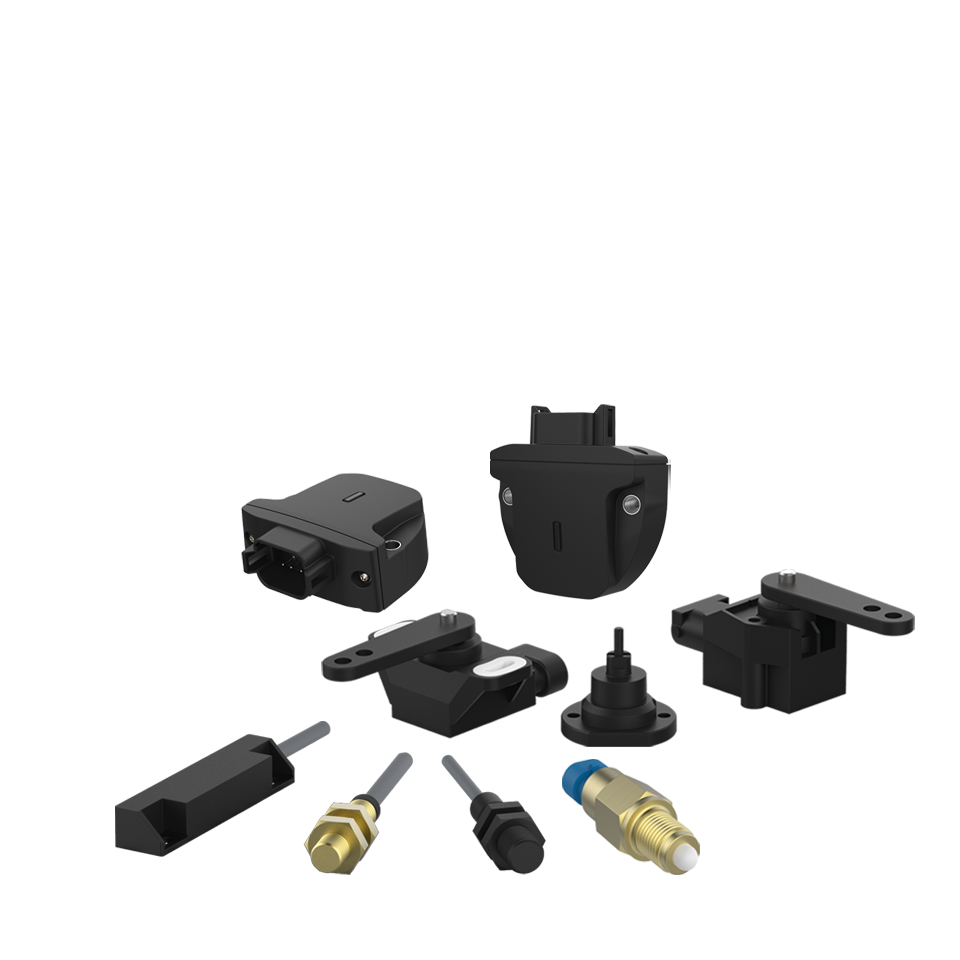

elobau sensors

elobau has been developing and producing sensors for position, location, and angle monitoring for more than 45 years. The broad range of sensors are manufactured in-house and thus reflect „Made in Germany” standards. In addition to tilt sensors, angle sensors, and proximity sensors, the product portfolio also includes position sensors on reed-contact basis. elobau’s sensors distinguish themselves through their excellent quality, robustness, and reliability.

Product highlights

  • Long service life through contactless technologies
  • High „Made in Germany“  technical quality and reliability
  • Precise measurement using high-resolution measurement methods
  • Large operating distances depending on the magnet
  • Wide variety of different electrical connections
  • Various output signals: analogue, digital, bus connection via CANopen or SAE J1939
  • Robust and compact housing designs in various materials
Sensor technology | Protection class up to IP69K | elobau

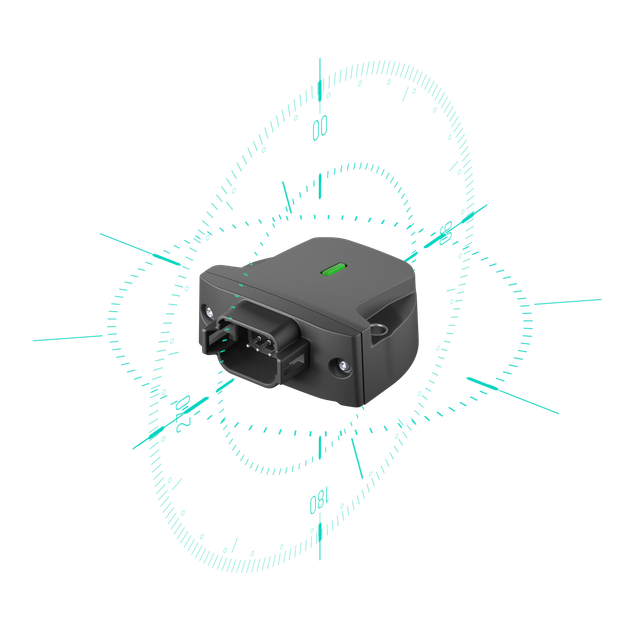

elobau’s tilt sensors

The robust inclination sensors from elobau enable the spatial, precise and efficient monitoring of an object. Due to the functional principle based on MEMS technology, inclination sensors do not require any further mechanical connection and are therefore the simplest option for determining any position on one, two or three axes.

Product highlights

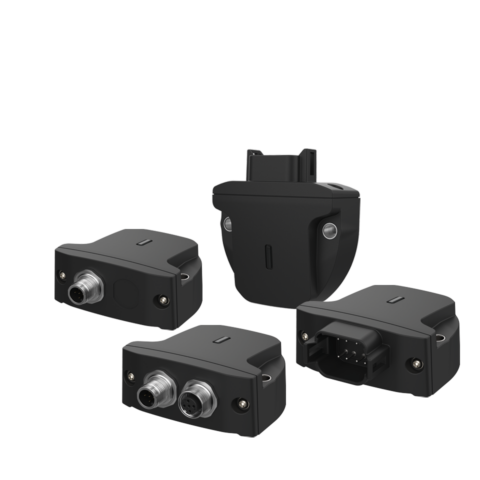

  • N6 static and N7 dynamic – ideal for use in mobile machinery
  • High reliability due to MEMS technology
  • Protection class IP6K7 / IP6K9K
  • High flexibility due to different connector variants and output signals
  • Customized solutions thanks to high modularity and application-related know-how
Product overview
elobaus tilt sensor

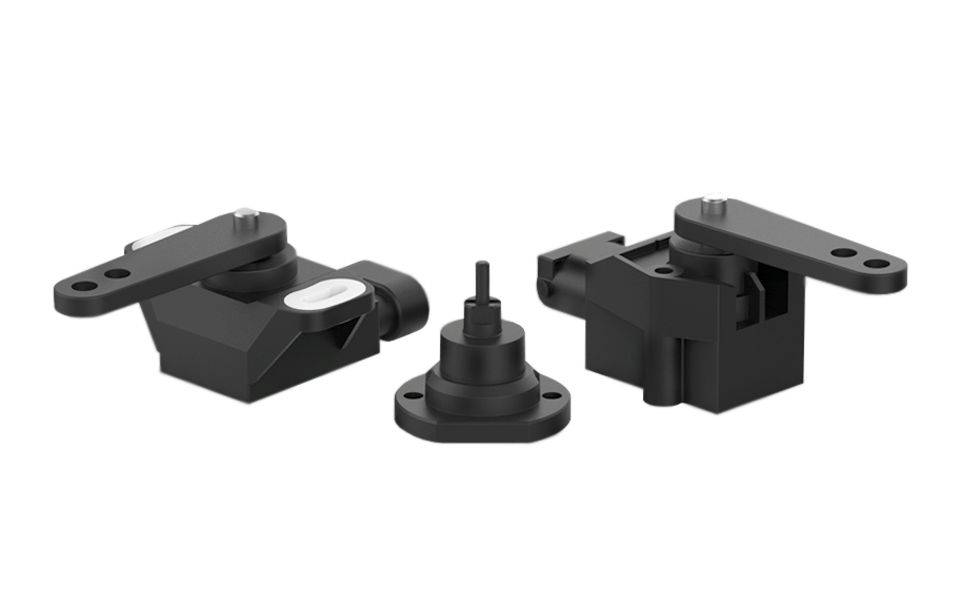

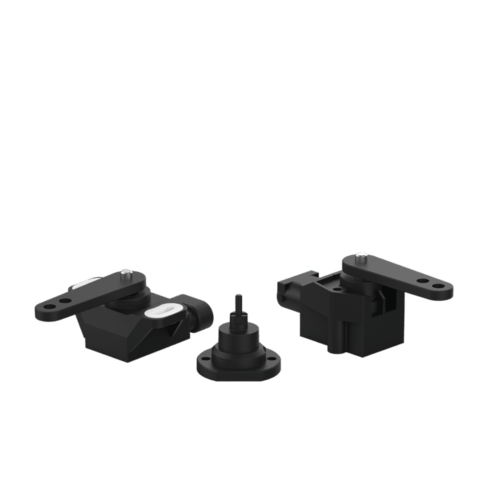

Angle sensors

elobau’s wear-free angle sensors are based on the contactless Hall principle and are equipped with a measuring range of up to 360°C. These sensors have a high resistance to shock and vibration, making them the ideal solution for use in industrial, agricultural or construction machinery.

Product highlights

  • Long lifespan
  • Compact, robust housing
  • Selection of signals
  • Analogue and digital outputs
Product overview
Winkelsensoren

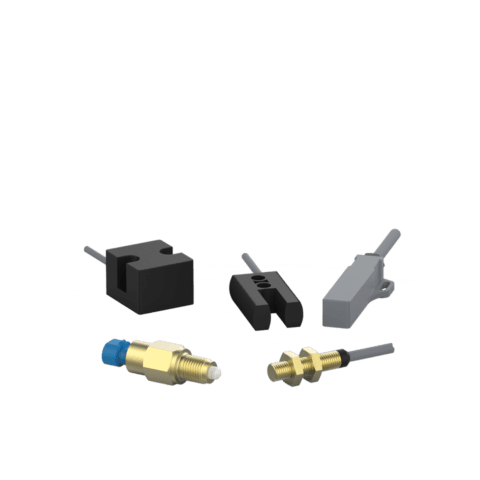

Position detection

elobau‘s portfolio of position sensors is extensive and includes sensors based on the Hall, MEMS, ultrasonic and magnetoresistive principles. In addition to the standard range, elobau offers customised solutions.

Product highlights

  • Contactless electronic sensors for mobile and industrial applications
  • Proximity switches with reed, Hall and magnetoresistive measuring prinicples
  • Plunger switches with application-specific adaption of housing design and plunger

Product overview

Individual sensor solutions

Since elobau manages the entire development and production process in-house, exclusive and individual solutions can be manufactured efficiently and to a high quality standard. Contact us if you can’t find the right product in our standard range, and we will work to find a solution that suits your requirements.

elobau Platine
Contact

In-house development, prototyping and production

Some industries, for example machine construction, have unique requirements that commercially available sensors cannot solve. In order to offer individual solutions while maintaining “made in Germany” standards, elobau controls and manages all services in-house. The in-house process includes mechanical construction, design, development of hardware and software, prototyping and extensive testing of materials and durability.

Overview of the sensor range
