Safety relay 46212

Availabe in elostore
Rate this product
  • PLe/SIL3/Cat.4
  • Supply voltage 24V AC and DC
  • Connection for 4 sensors normally open/ normally closed
  • Monitoring of connected contactors (EDM)
  • Very compact design
  • 1 relay safety output potential-free SIL3/PLe/Kat.4
  • 1 control output changeover contact potential-free
  • LEDs for status and error indication

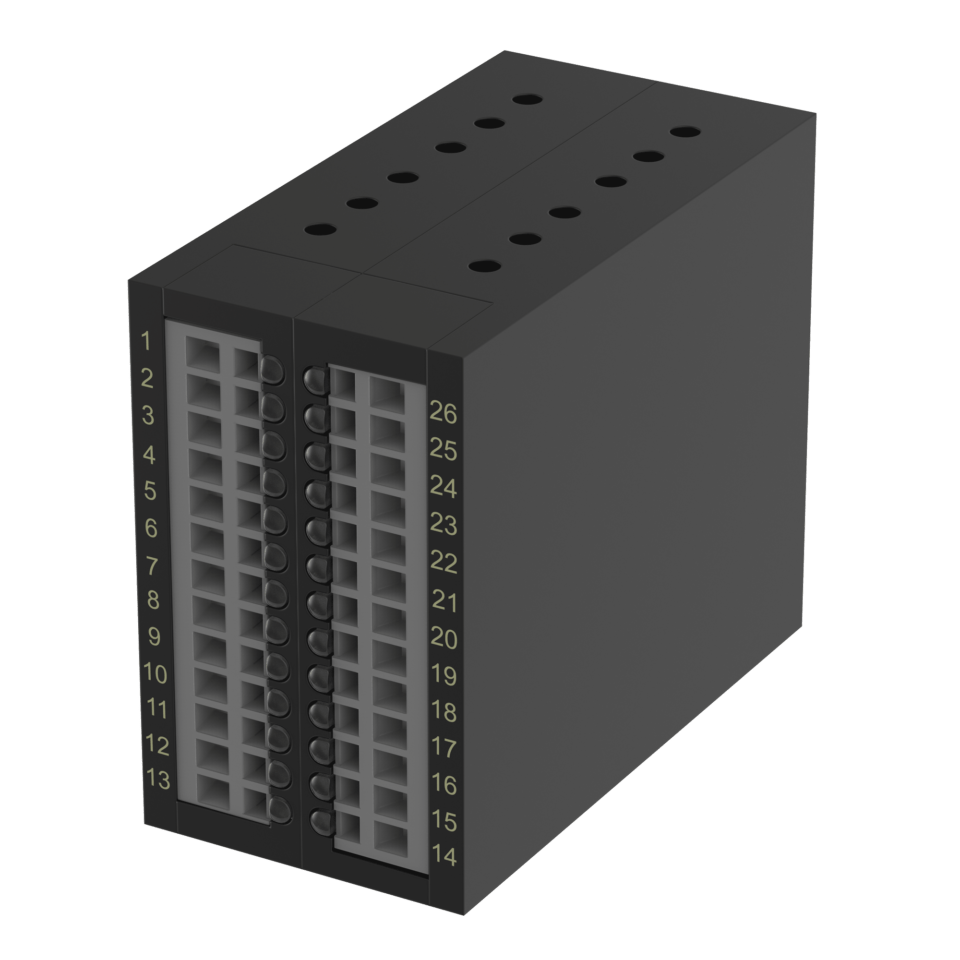

The compact design of the 4621273E safety evaluation unit allows it to be used even in applications with limited space.

A potential-free safety output in SIL3/PLe up to 4A and a control output with change-over contacts up to 3A are available. A maximum of 4 sensors with normally open/ normally closed contacts can be connected. Input expansion units (interfaces) can’t be used. Due to the 24V AC and DC supply voltage, the unit can be used for a wide range of applications.

The 4621273E can be used as a pin-compatible replacement for

462121E1
462121E1U (Note: different operating time)
462121E101
462121E1U1 (Note: different operating time)
462121E104
462124E1 (Note: different operating voltage AC 230 V)
462124E1U (Note: different operating voltage AC 230 V and different operating time)
462121H1
462121H1U (Note: different operating time)
462121H5
462121H5U (Note: different operating time)

Circuit examples are available on request from elobau.

View my requests
 Buy variants  Download all

This product is also available in the elo.store.

Technical drawing

1/2
Cat_MS_SAE_4621273E_DRW_opt
Full screen
1/2
2/2
Cat_MS_SAE_4621273E_CD_opt
Full screen
2/2

Article characteristics

  • 4621273E
  • Max. switching voltage at safety output
  • Max. switching voltage at control output
  • Max. switching voltage at safety output
  • Max. switching voltage at control output
  • Max. switching current at safety output
  • Max. switching current at control output
  • Max. switching power at safety output
  • Max. switching power at control output
  • Max. switching power at safety output
  • Max. switching power at control output
  • Number of relay safety outputs
  • Number of relay control outputs
  • Number of redundant safety inputs
  • Stop category 0 (STO) nach IEC 61800-5-2
  • Stop category 1 (SS1) nach IEC 61800-5-2
  • EDM/start input
  • Start function
  • Utilization category
  • Operating voltage min.
  • Operating voltage max.
  • Operating voltage min.
  • Operating voltage max.
  • Current consumption
  • Power consumption
  • Cross-short detection
  • LED display
  • Operating time
  • Min. switching voltage at safety output
  • Min. switching voltage at safety output
  • Min. switching current at safety output
  • Min. switching power at safety output
  • Min. switching power at safety output
  • Turn-on delay (ton)
  • Turn-off delay (toff)
  • Max no operating cycles at 0.5A switching current (ohmic load)
  • Max no operating cycles at 3A switching current (ohmic load)
  • Overvoltage category
  • Fuse operating voltage
  • Fuse safety output
  • Internal electronic fuse
  • Contact form
  • Power consumption
  • PL acc. to EN ISO 13849-1
  • SIL acc. to IEC 61508
  • SIL CL acc. to IEC 62061
  • PFHD according to IEC 61508
  • Category acc. to EN ISO 13849-1
  • Mission time in years
  • Hardware fault tolerance (HFT) according to IEC 61508
  • Dimensions
  • Housing material
  • Housing colour
  • Protection class
  • Protection class, installation space
  • Operating temperature min.
  • Max. operating temperature
  • Min. storage temperature
  • Max. storage temperature
  • Shock resistance (Norm)
  • Continuous shock resistance (Norm)
  • Vibration resistance (Norm)
  • Relative humidity
  • Air pressure
  • Delta tmax
  • Mounting type
  • Weight
  • Installation
  • Spring-type terminals
  • Pluggable connection terminals
  • Min. connection cross section
  • Max. connection cross section
  • Certified in accordance with
  • CE label
Attribute4621273E
Bestellung
Bestellung
Max. switching voltage at safety output 30 V DC
Max. switching voltage at control output 30 V DC
Max. switching voltage at safety output 250 V AC
Max. switching voltage at control output 250 V AC
Max. switching current at safety output 4 A
Max. switching current at control output 3 A
Max. switching power at safety output 120 W
Max. switching power at control output 90 W
Max. switching power at safety output 1000 VA
Max. switching power at control output 750 VA
Number of relay safety outputs 1
Number of relay control outputs 1
Number of redundant safety inputs 4
Stop category 0 (STO) nach IEC 61800-5-2 yes
Stop category 1 (SS1) nach IEC 61800-5-2 no
EDM/start input yes
Start function automatic
Utilization category AC-15 / DC-13
Operating voltage min. 21.6 V DC
Operating voltage max. 26.4 V DC
Operating voltage min. 21.6 V AC
Operating voltage max. 26.4 V AC
Current consumption 200 mA
Power consumption 5.28 W
Cross-short detection yes
LED display Yes
Operating time 10000 ms
Min. switching voltage at safety output 10 V DC
Min. switching voltage at safety output 10 V AC
Min. switching current at safety output 0.01 A
Min. switching power at safety output 0.1 W
Min. switching power at safety output 0.1 VA
Turn-on delay (ton) 100 ms
Turn-off delay (toff) 50 ms
Max no operating cycles at 0.5A switching current (ohmic load) 370000
Max no operating cycles at 3A switching current (ohmic load) 180000
Overvoltage category III
Fuse operating voltage 1A fast
Fuse safety output 4A slow blow
Internal electronic fuse no
Contact form NO/NC
Power consumption 5.28 VA
PL acc. to EN ISO 13849-1 e
SIL acc. to IEC 61508 3
SIL CL acc. to IEC 62061 3
PFHD according to IEC 61508 5,77 x 10^-10 1/h
Category acc. to EN ISO 13849-1 4
Mission time in years 20 a
Hardware fault tolerance (HFT) according to IEC 61508 1
Dimensions 75 x 47 x 92 mm (H/B/T)
Housing material PBT GF30
Housing colour schwarz
Protection class IP20 DIN EN 60529
Protection class, installation space IP54 DIN EN 60529
Operating temperature min. 0 °C
Max. operating temperature 55 °C
Min. storage temperature -25 °C
Max. storage temperature 70 °C
Shock resistance (Norm) 30 g / 11 ms
Continuous shock resistance (Norm) 10 g / 16 ms
Vibration resistance (Norm) 10...55 Hz; 0.5mm; 5g
Relative humidity 5 - 85 %
Air pressure 860 - 1060 hPa
Delta tmax 0.5 °C/min
Mounting type Mounting rail
Weight 250 g
Installation arbitrary
Spring-type terminals yes
Pluggable connection terminals no
Min. connection cross section 0.14 mm²
Max. connection cross section 2.5 mm²
Certified in accordance with EN ISO 13849-1 IEC 61508 IEC 62061 UL 508
CE label yes

Variants in elostore

Operating instructions and product information
Manual safety evaluation unit 4621273E pdf 2.31 MB
Evaluation unit 4621273 - Certificate TÜV Nord pdf 208.12 KB
Evaluation unit 4621273 - Certificate UL pdf 368.72 KB
