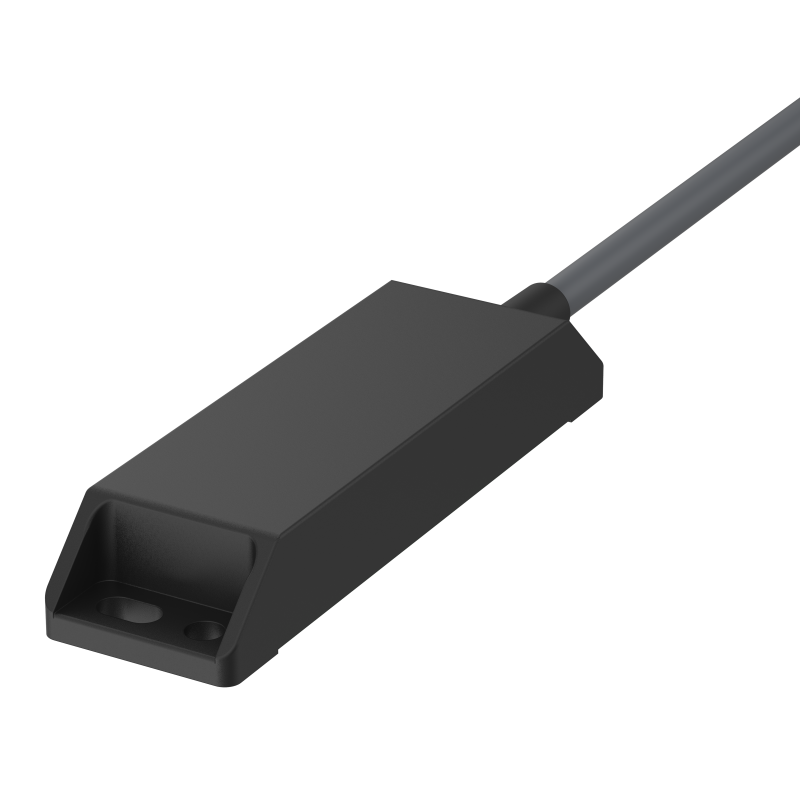

Safety sensor 165

Availabe in elostore
Rate this product
  • Sensors can be combined with different actuators (standard or amplified) can be combined for switching distance to suit the application
  • Variable connection through cable outlet and M8 housing connector
  • Simple diagnosis through optional LED and control contact
  • Oblong holes allow easy alignment

Safety doors, bonnets or covers can be safely monitored with the non-contact and therefore wear-free sensors in combination with the matching elobau safety evaluation unit. The magnetic safety sensors are particularly convincing for monitoring safety doors on food processing machines due to their concealed installation behind stainless steel.

The high number of variants at elobau offers solutions for almost all applications.

View my requests
 Buy variants  Download all

This product is also available in the elo.store.

Technical drawing

1/3
Safety sensor 165 - elobau
Full screen
1/3
2/3
Safety sensor 165 - elobau
Full screen
2/3
3/3
Safety sensor 165 - elobau
Full screen
3/3

Article characteristics

  • 165270
  • 165270A0D
  • 165270AA
  • 165270A0E
  • 165V62
  • 165V62A0D
  • 165570
  • 165562
  • 165V62A0DPC
  • 165V62PC
  • 165270A0DPC
  • 165270PC
  • Housing colour
  • Cable type
  • Cable colour
  • Detent present
  • Installation
  • Certified in accordance with
  • CE label
  • Contact form
  • Min. switching voltage
  • Max. switching voltage
  • Max. switching current
  • Max. switching power
  • Switching frequency
  • Assured switching distance (Sao)
  • Assured switch-off distance (Sar)
  • Minimum switching distance (S0 min)
  • LED display
  • Actuation
  • Switching principle
  • Series resistor
  • Technology
  • Coding acc. to EN ISO 14119
  • B10d acc. to EN ISO 13849-1
  • Type acc. to EN ISO 14119
  • Mission time in years
  • Structure acc. to EN ISO 13849-1
  • Housing design
  • Dimensions
  • Free zone
  • Minimum installation distance (between two sensors)
  • cannot be mounted flush
  • Housing material
  • Cable material
  • Protection class
  • Protection class, connector
  • Operating temperature min.
  • Max. operating temperature
  • Min. cable temperature range, moving
  • Max. cable temperature range, moving
  • Min. cable temperature range, fixed installation
  • Max. cable temperature range, fixed installation
  • Shock resistance (Norm)
  • Vibration resistance (Norm)
  • Min. storage temperature
  • Max. storage temperature
  • Mounting type
  • Weight
  • Torque for fastening screws
  • Connector type
  • Cable length
  • Number of strands
  • Wire cross section
  • Possible actuators
Attribute165270165270A0D165270AA165270A0E165V62165V62A0D165570165562165V62A0DPC165V62PC165270A0DPC165270PC
Bestellung
Bestellung
Housing colour schwarz schwarz Gelb
Cable type LiYY 4x0,25 – LiYY 4x0,25 – LiYY 4x0,25 – LiYY 6x0,23 – LiYY 4x0,25 – LiYY 4x0,25
Cable colour grau – grau – grau – schwarz – grau – grau
Detent present no no
Installation arbitrary arbitrary
Certified in accordance with ETL CE CE ETL
CE label yes yes
Contact form NO/NC NO/NO NO/NC/NO (Kontrollkontakt) – NO/NO NO/NC
Min. switching voltage – – 19.2 V DC
Max. switching voltage 28.8 V DC 28.8 V DC
Max. switching current 0.1 A 0.02 A 0.1 A 0.1 A
Max. switching power – 3 W –
Switching frequency 5 Hz 5 Hz
Assured switching distance (Sao) 3 mm 4 mm 5 mm 3 mm
Assured switch-off distance (Sar) 16 mm 17 mm 16 mm 17 mm 16 mm
Minimum switching distance (S0 min) 0.5 mm 0.5 mm
LED display No single-coloured No single-coloured No
Actuation front side front see technical drawing side see technical drawing front
Switching principle magnetic magnetic
Series resistor 22 Ohm – 22 Ohm 22 Ohm
Technology Reed Reed
Coding acc. to EN ISO 14119 Low Low
B10d acc. to EN ISO 13849-1 20000000 20000000
Type acc. to EN ISO 14119 4 4 – 4
Mission time in years 20 a 20 a
Structure acc. to EN ISO 13849-1 Two-channel Two-channel
Housing design cuboid rectangular cuboid
Dimensions 88x25x14 88x25x14
Free zone – 20 mm – 20 mm –
Minimum installation distance (between two sensors) 50 mm 50 mm
cannot be mounted flush no no
Housing material PBT PBT
Cable material PVC – PVC – PVC – PVC – PVC – PVC
Protection class IP67 DIN EN 60529 IP67 / IP69K DIN EN 60529 IP67 DIN EN 60529 IP67 / IP69K DIN EN 60529 IP67 DIN EN 60529
Protection class, connector – IP65 DIN EN 60529 –
Operating temperature min. -25 °C -25 °C – -25 °C
Max. operating temperature 75 °C 100 °C – 75 °C
Min. cable temperature range, moving -5 °C – -5 °C – -5 °C – -10 °C – -5 °C – -5 °C
Max. cable temperature range, moving 70 °C – 70 °C – 70 °C – 105 °C – 70 °C – 70 °C
Min. cable temperature range, fixed installation -25 °C – -25 °C – -25 °C – -30 °C – -25 °C – -25 °C
Max. cable temperature range, fixed installation 70 °C – 70 °C – 70 °C – 105 °C – 70 °C – 70 °C
Shock resistance (Norm) 30g / 11ms 30g / 11ms
Vibration resistance (Norm) 10 - 55Hz 10 - 55Hz
Min. storage temperature -25 °C -25 °C
Max. storage temperature 75 °C 100 °C 75 °C
Mounting type screwed screwed Latching detent screwed
Weight 63 g – 76 g – 63 g
Torque for fastening screws 2 N m 2 N m
Connector type – M8x1 4-polig – M8x1 4-polig – M8x1 4-polig – M8x1 4-polig – M8x1 4-polig –
Cable length 1 m – 1 m – 1 m – 1 m – 1 m – 1 m
Number of strands 4 – 4 – 4 – 6 – 4 – 4
Wire cross section 0.25 mm² – 0.25 mm² – 0.25 mm² – 0.23 mm² – 0.25 mm² – 0.25 mm²
Possible actuators 30426112 / 30426192 (30426112S) 30426112 30426112 / 30426192 (30426112S) 30426112 / 30426112S 30426112 / 30426192 (30426112S) 30426112PC / 30426112SPC
