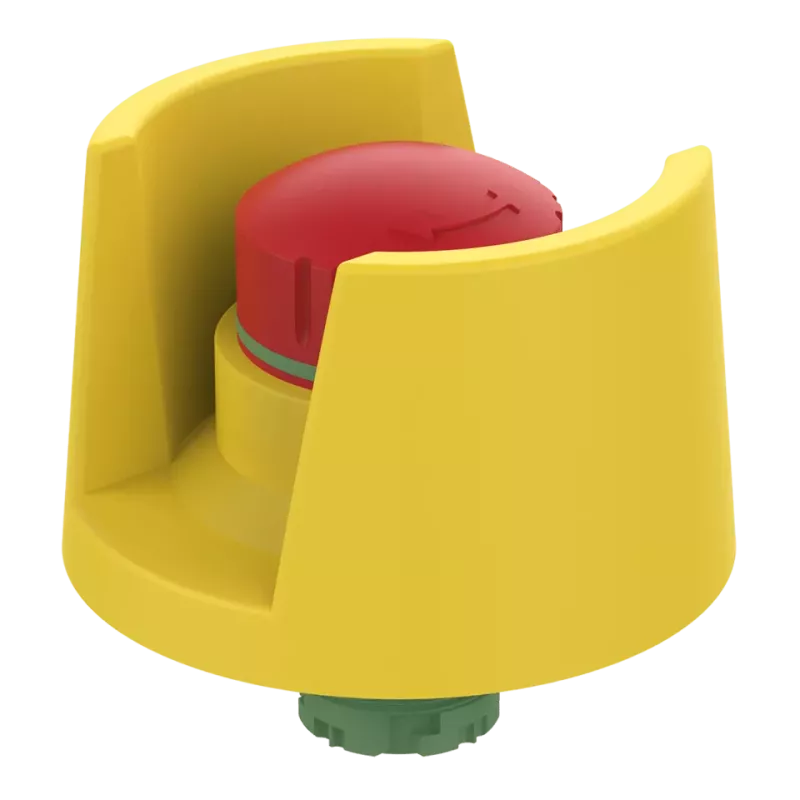

Emergency stop button NHT05D

Availabe in elostore

Emergency stop button NHT05D

Availabe in elostore
  • Latching detent for anti-rotation protection and to prevent easy removal
  • Optical switch position indicator (green ring)
  • Simple rotary release
  • When used in combination with emergency stop enclosure NHG01, it can be used as a surface mounted version
  • Matching installation wrench MS01 for simple installation
  • Operation protection collar

Suitable contact elements:

KE20 Contact element with 2 N.C. contacts
KE20SF Contact element with 2 N.C. contacts + failure protection*
KE21 Contact element with 2 N.C. contacts + 1 N.O. contact
KE21SF Contact element with 2 N.C. contacts + 1 N.O. contact + failure protection*

*The failure protection system detects whether the contact elements are assembled correctly and switches the safety circuit off if a contact element should detach due to external influences.

The following safety control units / safety relays are suitable for integration into the safety product line:

470… eloFlex Mini 2 two-channel inputs, freely configurable
471… eloFlex 4 two-channel inputs, freely configurable
485 EP… eloProg up to 128 inputs, freely configurable



The operation protection collar of emergency stop button NHT05D prevents inadvertent actuation. The blocking of external mechanical influences enables use in heavily frequented areas, in confined spaces and on mobile machines.

This product is also available in the elo.store.

Technical drawing

1/1
NHT05D-01
Full screen
1/1

Article characteristics

  • NHT05D
  • Unlocking device
  • Anti-obstruction protective collar
  • Operation protective collar
  • Service life, mechanical (Cycles)
  • Dimensions
  • Detent present
  • Housing material
  • Housing colour
  • Protection class
  • Operating temperature min.
  • Max. operating temperature
  • Min. storage temperature
  • Max. storage temperature
  • Mounting type
  • Installation opening
  • Installation
  • Torque for nuts
  • Installation depth
  • Certified in accordance with
  • CE label
  • Hygienic approval
AttributeNHT05D
Bestellung
Bestellung
Unlocking device Rotary release left/right
Anti-obstruction protective collar no
Operation protective collar yes
Service life, mechanical (Cycles) 100000
Dimensions Ø67 x 60,9 mm
Detent present yes
Housing material Plastic
Housing colour Front bezel: yello; Mushroom head: red
Protection class IP65 DIN EN 60529
Operating temperature min. -30 °C
Max. operating temperature 70 °C
Min. storage temperature -50 °C
Max. storage temperature 85 °C
Mounting type Fastening nut
Installation opening Ø22,3 mm
Installation from above
Torque for nuts 2,2 N m
Installation depth 19.4 mm
Certified in accordance with EN 60947-5-5 EN 60947-5-1 EN ISO 13850 UL 508 / CSA 22.2
CE label yes
Hygienic approval no
Operating instructions and product information
Manual emergency stop button pdf 3.68 MB
